Vulcan tail top shapes

Postby Ray C » Sun Sep 16, 2012 4:58 pm

I noticed when sorting 603 & 558 shots their tails are differnt at the very top.

Why is this they are both Mk2s...............?

[*]Image

[*]Image
Be yourself...everyone else is taken...!
Oscar Wilde.
User avatar
Ray C
BAE Hawk
BAE Hawk

Posts: 2602
Joined: Sat Dec 17, 2011 3:31 pm
Location: Almost in sight of the Vulcan birthplace
Also Known As: Castle boy

Re: Vulcan tail top shapes

Postby Xplumberlives » Sun Sep 16, 2012 4:59 pm

One of then hasn't got the RWRs fitted! ;)
"All modern aircraft have 4 dimensions: span, length, height and politics.
TSR-2 simply got the first 3 right. ”
— Sir Sydney Camm
User avatar
Xplumberlives
Boeing B-17 Flying Fortress
Boeing B-17 Flying Fortress

Posts: 41159
Joined: Wed Oct 01, 2008 9:27 pm
Location: Close to a former Harrier Airfield
Also Known As: ROCKETMAN

Re: Vulcan tail top shapes

Postby Sooty655 » Sun Sep 16, 2012 5:23 pm

XM603 had a conventional late-Vulcan tail (RWR antennas) when it returned to Woodford. The 603 Club decided to return it to the "as delivered" condition as a reflection of how it looked when it left Woodford originally.
Sooty

One Olympus 301 has twice the power of a complete F1 starting grid.
XM655 has four of them, all serviceable.
When we make noise, WE MAKE NOIZE ! !
User avatar
Sooty655
Moderator
Moderator

Posts: 8822
Joined: Sat Jan 03, 2009 9:17 pm
Location: Weedon, Northants

Re: Vulcan tail top shapes

Postby Ray C » Sun Sep 16, 2012 6:22 pm

Thank you gentlemen..... :ymapplause:
Be yourself...everyone else is taken...!
Oscar Wilde.
User avatar
Ray C
BAE Hawk
BAE Hawk

Posts: 2602
Joined: Sat Dec 17, 2011 3:31 pm
Location: Almost in sight of the Vulcan birthplace
Also Known As: Castle boy

Re: Vulcan tail top shapes

Postby MOD » Sun Sep 16, 2012 6:25 pm

The prize for the fastest RWR modification/removal must go to Vulcan XL445 which was using Coningsby as a bolt hole whilst Scampton's runway was resurfaced. These pics were taken on the 15th June 1983.

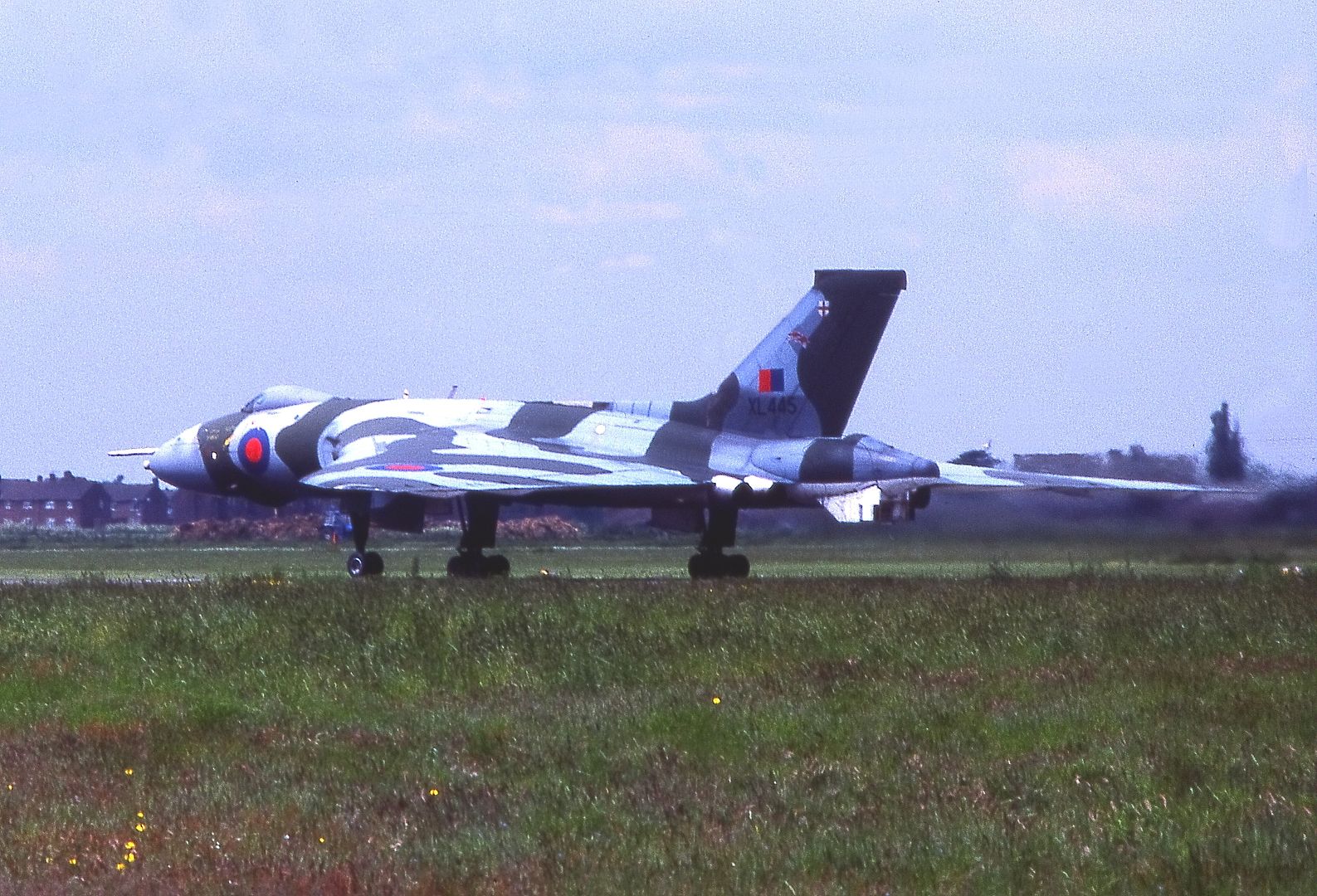

XL445 leaves (Note the HDU)

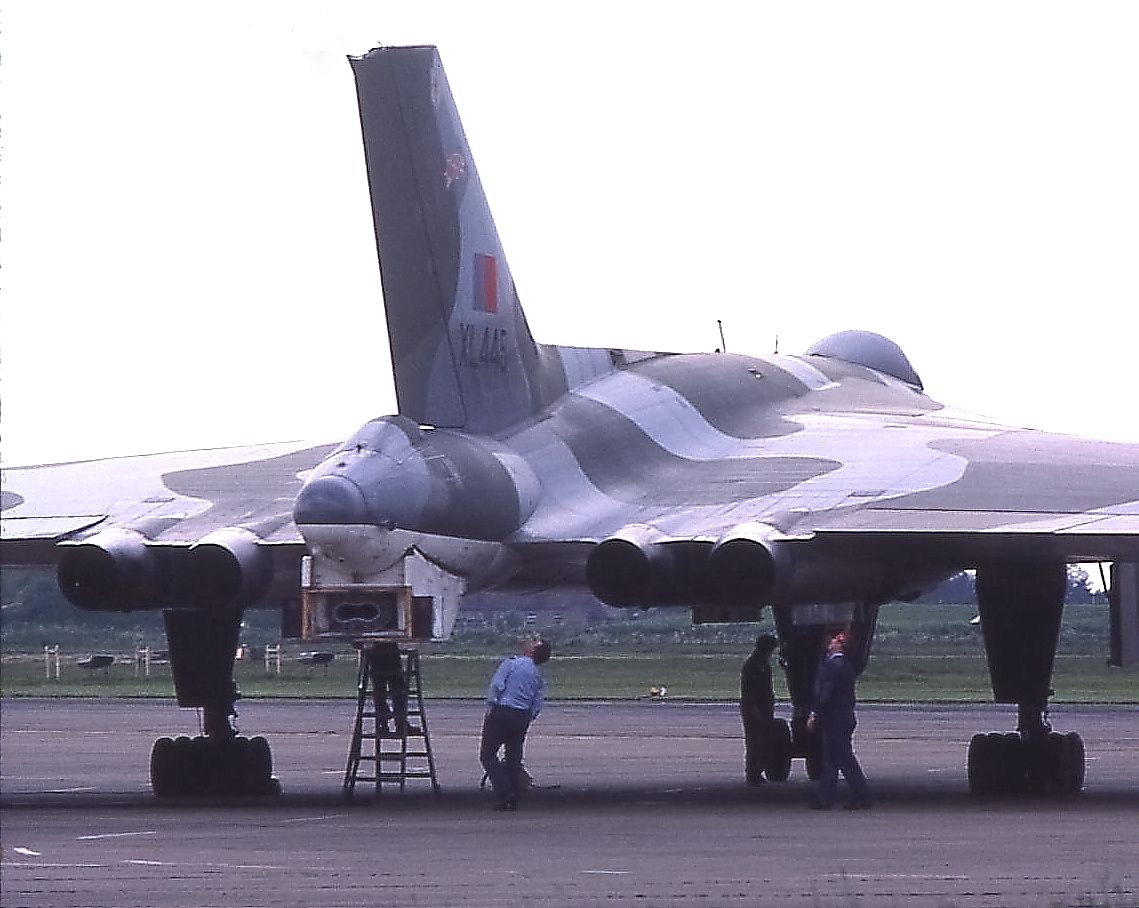

XL445 returns a bit later with something missing.

At the time it was said to have been caused by a Lightning strike but was it later revealed to have been a failure of the screw fittings attaching the RWR to the top of the tail-fin.

ibw (Got any more Vulcan shots Ray)? ;)
User avatar
MOD
BAE Hawk
BAE Hawk

Posts: 2796
Joined: Tue Jun 02, 2009 8:25 pm
Location: Bromsgrove. Worcs. ex East Riding
Also Known As: ibw123Heyfordian etc

Re: Vulcan tail top shapes

Postby Ray C » Mon Sep 17, 2012 1:45 pm

I hope to get more 603 shots in the near future.
On the Vulcan shot you posted, what on earth is the box/unit under the rear tail......?
Be yourself...everyone else is taken...!
Oscar Wilde.
User avatar
Ray C
BAE Hawk
BAE Hawk

Posts: 2602
Joined: Sat Dec 17, 2011 3:31 pm
Location: Almost in sight of the Vulcan birthplace
Also Known As: Castle boy

Re: Vulcan tail top shapes

Postby Minty4371 » Mon Sep 17, 2012 2:15 pm

Ray C wrote:I hope to get more 603 shots in the near future.
On the Vulcan shot you posted, what on earth is the box/unit under the rear tail......?

This comes from Wikipedia.

Aerial refuelling role
After the end of the Falklands War in 1982, the Vulcan B.2 was due to be withdrawn from RAF service that year. However, the Falklands campaign had consumed much of the airframe fatigue life of the RAF's Victor tankers. While Vickers VC10 tanker conversions had been ordered in 1979 and Lockheed TriStar tankers would be ordered subsequent to the conflict, six Vulcan B.2s were converted to a tanker configuration as a stopgap measure. The Vulcan tanker conversion was accomplished by removing the jammers from the ECM bay in the tail of the aircraft, and replacing them with a single Hose Drum Unit (HDU). An additional cylindrical bomb-bay tank was fitted, making a total of three, giving a fuel capacity of almost 100,000 lb (45,000 kg).
The go-ahead for converting the six aircraft was given on 4 May 1982. Just 50 days after being ordered, the first Vulcan tanker, XH561, was delivered to RAF Waddington. The Vulcan K.2s were operated by No. 50 Squadron, along with three Vulcan B.2s, in support of UK air defence activities.
Flickr site: http://www.flickr.com/photos/16521384@N07/sets/
XH558 Member from 1st April 2008 to 1st April 2016;
XM655 Member from February 2011 to February 2016;
Member of 82045 Locomotive Trust
User avatar
Minty4371
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1589
Joined: Fri Aug 13, 2010 8:34 pm
Location: Sutton Bridge, nr Spalding, Lincolnshire

Re: Vulcan tail top shapes

Postby Ramshornvortex » Mon Sep 17, 2012 2:37 pm

......and to further tie the whole episode together, the original mod trial for the K2 tanker role was carried out on XM603 which by then had been returned to Woodford - it was nicknamed either the 'MFI wardrobe' or the 'skip' depending on your point-of-view. As all the 'dustbins' had to be removed from '603 to make room for the HDU, they were never replaced although the radiator scoop/exhaust fairing on the starboard side of the ECM bulge was retained.

'558 also underwent the conversion to tanker, but as this was operational, the fairing was removed from the ECM bulge and was never subsequently restored.
User avatar
Ramshornvortex
Lockheed F-104 Starfighter
Lockheed F-104 Starfighter

Posts: 341
Joined: Tue Dec 30, 2008 6:11 pm
Location: Northamptonshire

Re: Vulcan tail top shapes

Postby Ray C » Mon Sep 17, 2012 3:26 pm

Again thanks for the info guys, I must say it looked very Heath Robinson. :(
Be yourself...everyone else is taken...!
Oscar Wilde.
User avatar
Ray C
BAE Hawk
BAE Hawk

Posts: 2602
Joined: Sat Dec 17, 2011 3:31 pm
Location: Almost in sight of the Vulcan birthplace
Also Known As: Castle boy

Re: Vulcan tail top shapes

Postby Skudupnorth » Mon Sep 17, 2012 9:54 pm

I wonder if the 603 team saved the tail top of the old girl to use as a display item or was it just dumped ?
User avatar
Skudupnorth
Piper J-3 Cub
Piper J-3 Cub

Posts: 58
Joined: Fri May 13, 2011 7:52 pm
Also Known As: skudupnorth
