Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Tue Oct 22, 2013 12:20 pm

ok highlight of the last big issue
the bolts highlighted for the suspension are rubbing on the track,
not normaly an issue untill you have multiple gauges running on the same track
so i now have the fiddly job of undoing all the bolts (12 off) and cutting them down and the springs too, while the loco is in full build condition ~x( never happens when they are easy to get at =))
at least I am aware of this issue when I build the axle boxes for speedy

edit cant say how happy i am to report that there is an issue while on the track ;) :p
ok now fixed the offending side i now have to do the other one
before:
after trimming 1/4" off
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby 34053 » Tue Oct 22, 2013 8:18 pm

Great job there Dougs. 'These things are sent to try us', as they say!

PW
User avatar
34053
BAE Hawk
BAE Hawk

Posts: 2425
Joined: Fri Oct 24, 2008 1:44 pm
Also Known As: Papa Wedgy

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Wed Oct 30, 2013 8:02 am

thwarted yet again!!!!! ~x( ~x( ~x( X(
just when I thought I had got every duck in line I was determined that i was going to run butch this weekend for its 2nd shakedown test and i go and break my collar bone so thats probably it for the rest of this year :((
(sholders sholder drops and he walks away)
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Minty4371 » Wed Oct 30, 2013 10:01 am

Rest up and heal well. Thank you for your updates.
Flickr site: http://www.flickr.com/photos/16521384@N07/sets/
XH558 Member from 1st April 2008 to 1st April 2016;
XM655 Member from February 2011 to February 2016;
Member of 82045 Locomotive Trust
User avatar
Minty4371
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1588
Joined: Fri Aug 13, 2010 8:34 pm
Location: Sutton Bridge, nr Spalding, Lincolnshire

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Wed Oct 30, 2013 10:39 am

thanks Minty they gonna have to take me down kicking and screaming (prob. like a baby) i am already thinking up ways of getting some way of running my loco without the heavy lifting ;) :p
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby 34053 » Wed Oct 30, 2013 4:18 pm

Sorry to hear your news, Dougs. I am sure that you are a quick healer (the 'young man' that you are ;) ) and will soon be 'back in harness'. Take good care of yourself.

PW
User avatar
34053
BAE Hawk
BAE Hawk

Posts: 2425
Joined: Fri Oct 24, 2008 1:44 pm
Also Known As: Papa Wedgy

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dan4th » Wed Oct 30, 2013 5:42 pm

Sounds like time for some Helpers :D !

What rotten luck, though.....

Danf.
I like to do my planning retroactively!
User avatar
Dan4th
Boeing B-52 Stratofortress
Boeing B-52 Stratofortress

Posts: 14733
Joined: Thu Nov 06, 2008 9:42 pm
Location: Bangor, Maine, USA
Also Known As: Token Murkin

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Sun Nov 03, 2013 6:18 pm

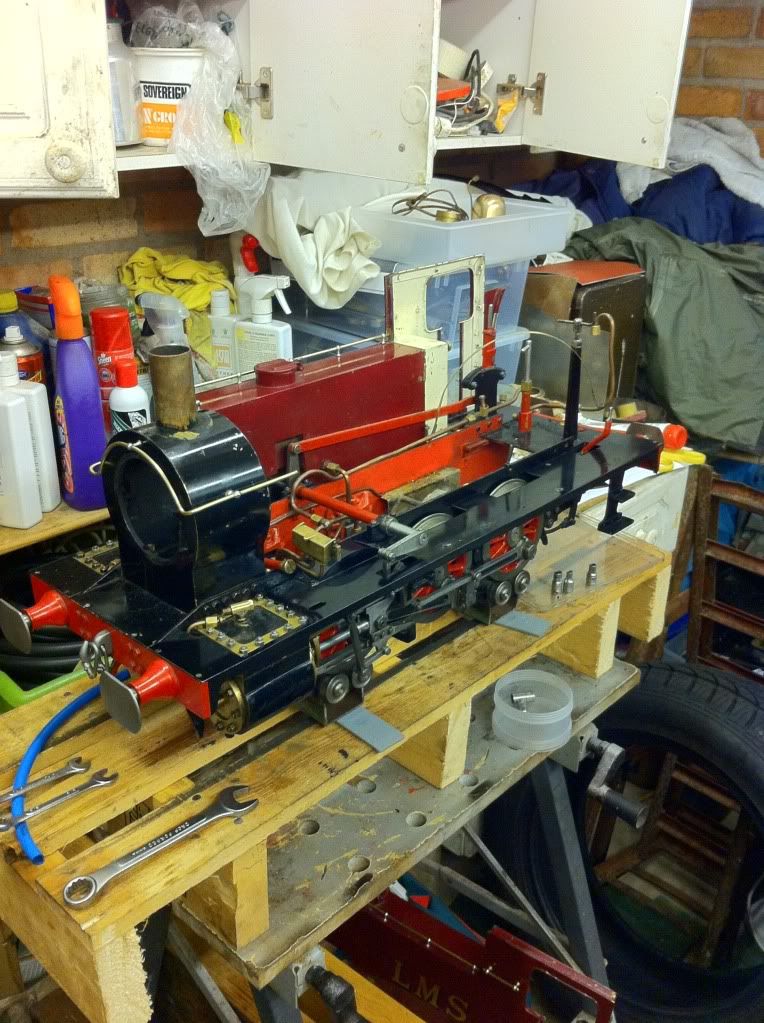

Good news I did get to run today I did about four laps of the track I am very happy that it is now an officially fully running locomotive :D no issues so I can close this chapter of restoration everything from now on is upgrading and "pimping" B-)
So what would I like to do in the not so distant future, well here is the list;
Modify the lubrication system for the cylinders to aid maintenance and general access
Modify the steam manifold so all the controls are easy to get to in the cab and face the driver (should stop the scolding that currently happens on EVERY outing ~x( )
Respray the whole loco (currently no paint adhesion so it peels off very easily)
Refurbish the axle water pump
Fit a new steam injector ( for filling the boiler current one does not work)
Fit a new pressure gauge current one is too big and gets in the way of the controls

So with that little lot I should be kept busy for a while and hopefully you guys entertained with updates that lot should turn my little loco into a great runner :D
I have one last run to do on 17th November so my dad can see it running then it's having some heavy surgery hopefully I won't be following suit :p
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby 34053 » Sun Nov 03, 2013 6:24 pm

That's excellent news Dougs. Quite a 'to do' list, but I know that you are more than capable of working through it systematically. Keep the Updates coming!

PW
User avatar
34053
BAE Hawk
BAE Hawk

Posts: 2425
Joined: Fri Oct 24, 2008 1:44 pm
Also Known As: Papa Wedgy

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Wed Nov 06, 2013 9:05 am

With the results of the run on Sunday added to the issues I have with my shoulder I have made the decision not to run again this year, as the train could be damaged if I don’t get it working correctly. The main issue is with the lubrication pump this puts a small amount of oil into the cylinders to keep everything moving. I noticed while running everything getting a little tight and the train would not free wheel easily some of the guys at the club had a quick look and told me to stop running right away as without oil going into the cylinders it could seize up :-o I checked the lube pump when i got home by running on compressed air and sure enough it’s not working which is when I made the job list above. to get to the lube pump and water pump it’s a boiler off job with this in mind I can attack nearly all the jobs on the list if I do a complete strip down and don’t run again (remove any time pressures) so with this in mind I am working from the back forward and repainting and fixing as I go.

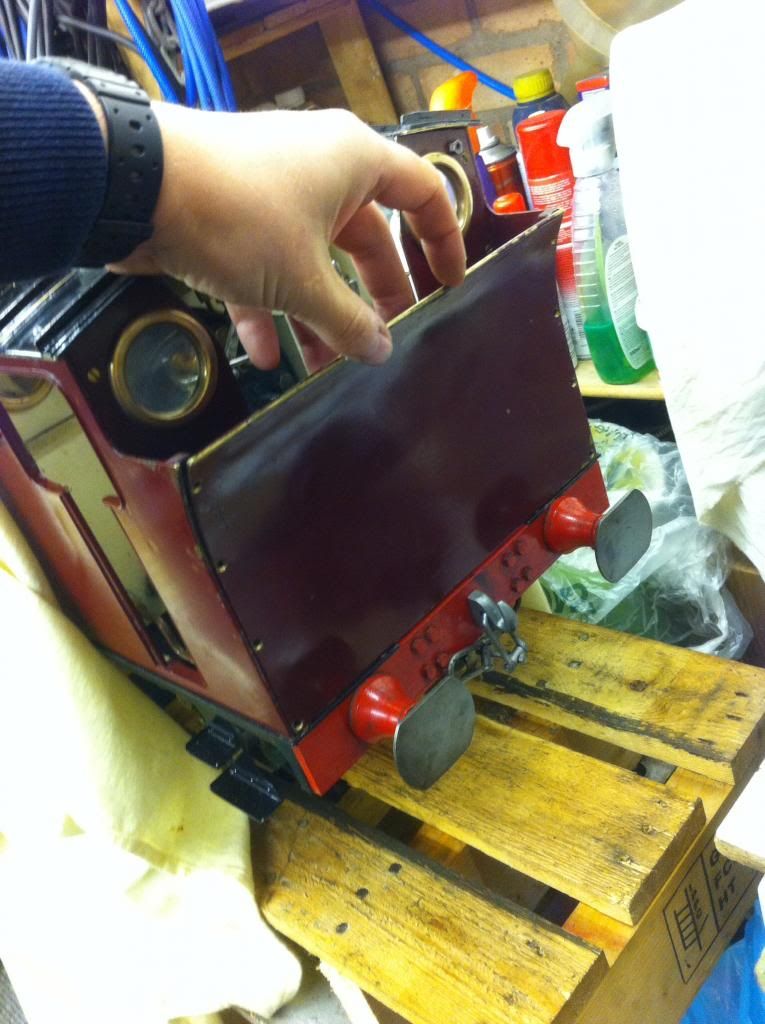

The rear bunker plate is the first off

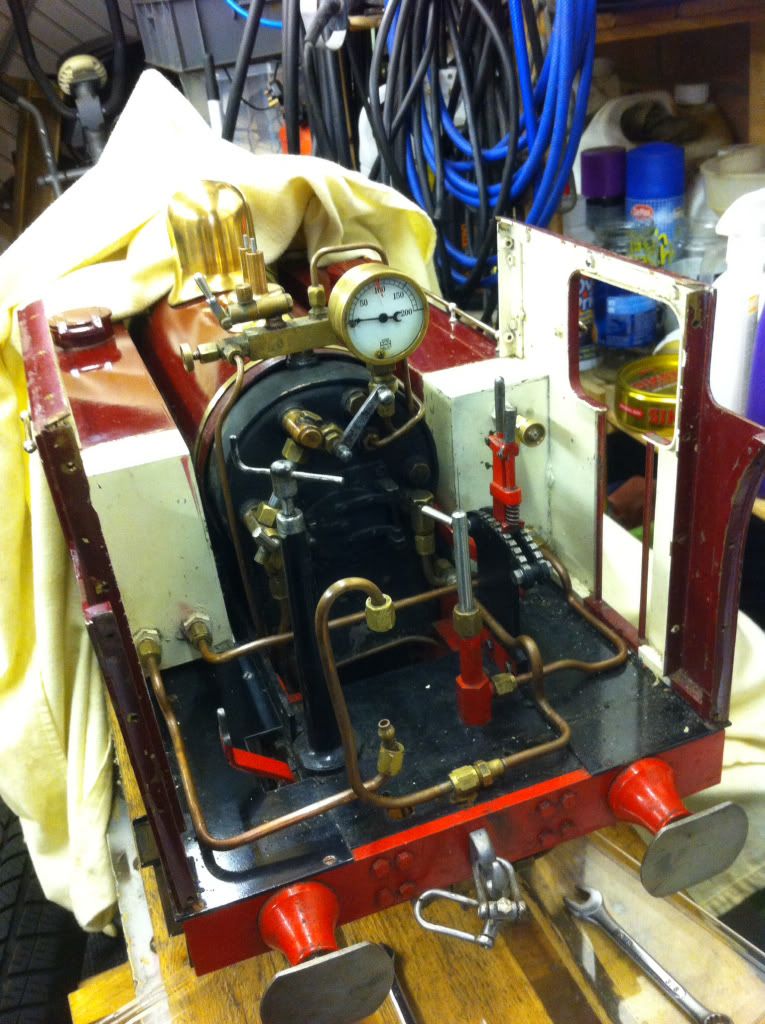

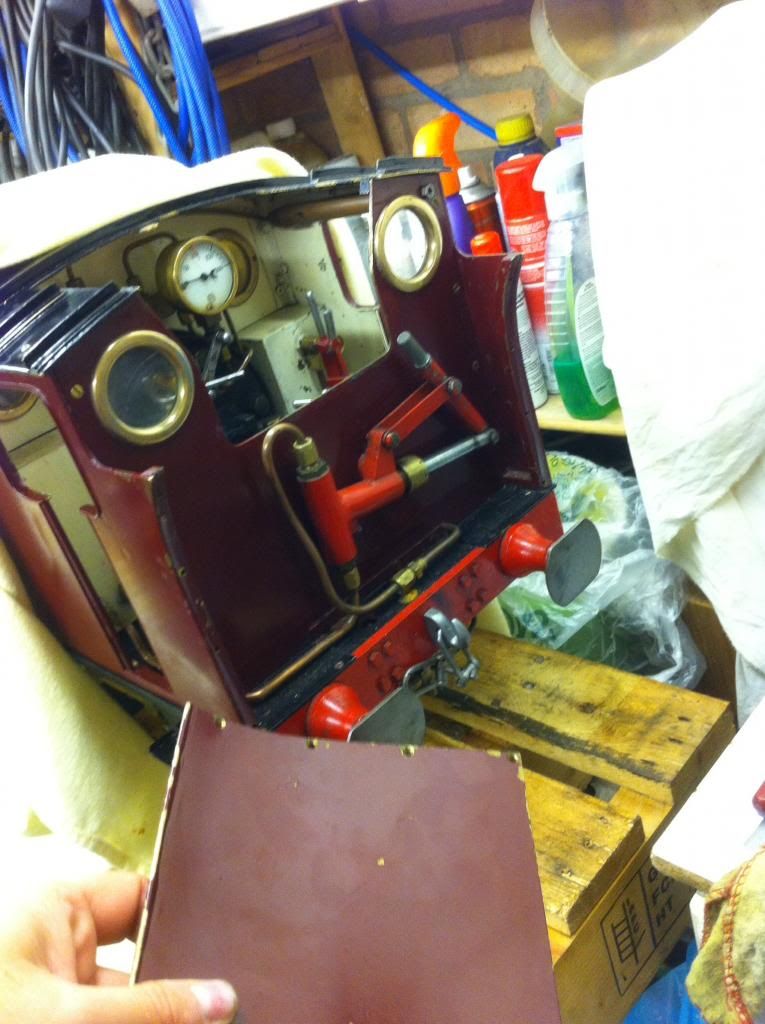

once off it shows the hand pump to feed the boiler
the panel is then put in the blaster cabinet to have the paint removed this is something I can do to most of the panels except the two side tanks these will require stripping by hand as I don’t want sand in the water system

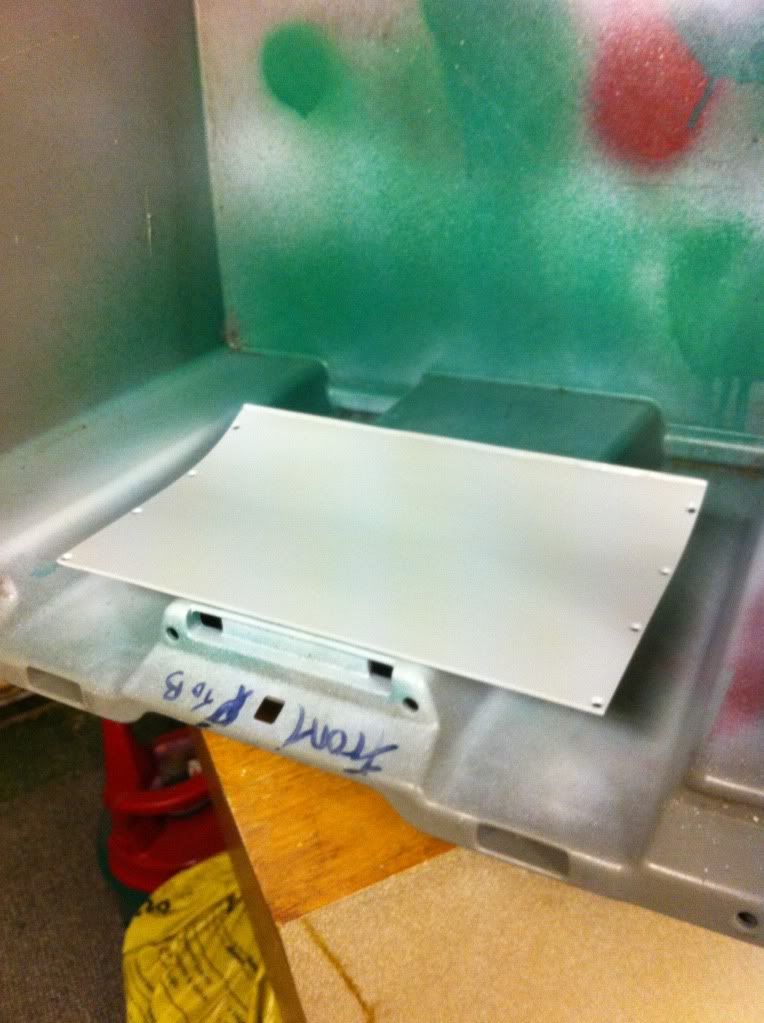

all nicely stripped of paint and keyed ready for Acid etch primer to be applied I can also see some area's that will have to be filled to make a super clean finish as I am now going for showroom finish :)
painting is going to be fairly long and complex job as I have quite a few layers to put down first off Acid etch primer, because its brass normal primer will just peel off, any filling that’s required then comes some red primer this will help the top coat show its crimson colour off then to top it off a lacquer coat to protect the paint and the livery on the sides I am thinking a two pack for this as its very hard to scratch.
TBC
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby RLN » Wed Nov 06, 2013 9:11 am

This is all fascinating stuff, Dougs. Looks like you'll be kept busy over Winter. Thanks for keeping us up to date.
User avatar
RLN
Moderator
Moderator

Posts: 15709
Joined: Sat Oct 04, 2008 2:13 pm

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dan4th » Wed Nov 06, 2013 12:26 pm

Another PERFECTIONIST, I see :)) !

It's a painful condition to live with :((

Onward!

Danf.
I like to do my planning retroactively!
User avatar
Dan4th
Boeing B-52 Stratofortress
Boeing B-52 Stratofortress

Posts: 14733
Joined: Thu Nov 06, 2008 9:42 pm
Location: Bangor, Maine, USA
Also Known As: Token Murkin

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby 34053 » Wed Nov 06, 2013 1:19 pm

Thank you Dougs. Yes, lubrication is VERY important! (While working on 'Sir Keith Park' I was astounded by the extent of all the small bore copper lubrication pipework - mostly hidden underneath the Boiler/inside the Frames :-o :-o ).

Keep up the good work, Dougs. Really enjoy your detailed, step by step, Reports. :ymapplause:

PW
User avatar
34053
BAE Hawk
BAE Hawk

Posts: 2425
Joined: Fri Oct 24, 2008 1:44 pm
Also Known As: Papa Wedgy

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Thu Nov 07, 2013 3:51 pm

general lubrication is very time consuming on my loco too PW there are so many lubrication points it takes about ten mins to go round them all and trying not to forget any it’s then ready for one good run before it needs doing again the thing drips oil like a Chinese motorbike ~x(
anyway on with the paint job and strip down the bunker back plate in etch primer
The roof removed next

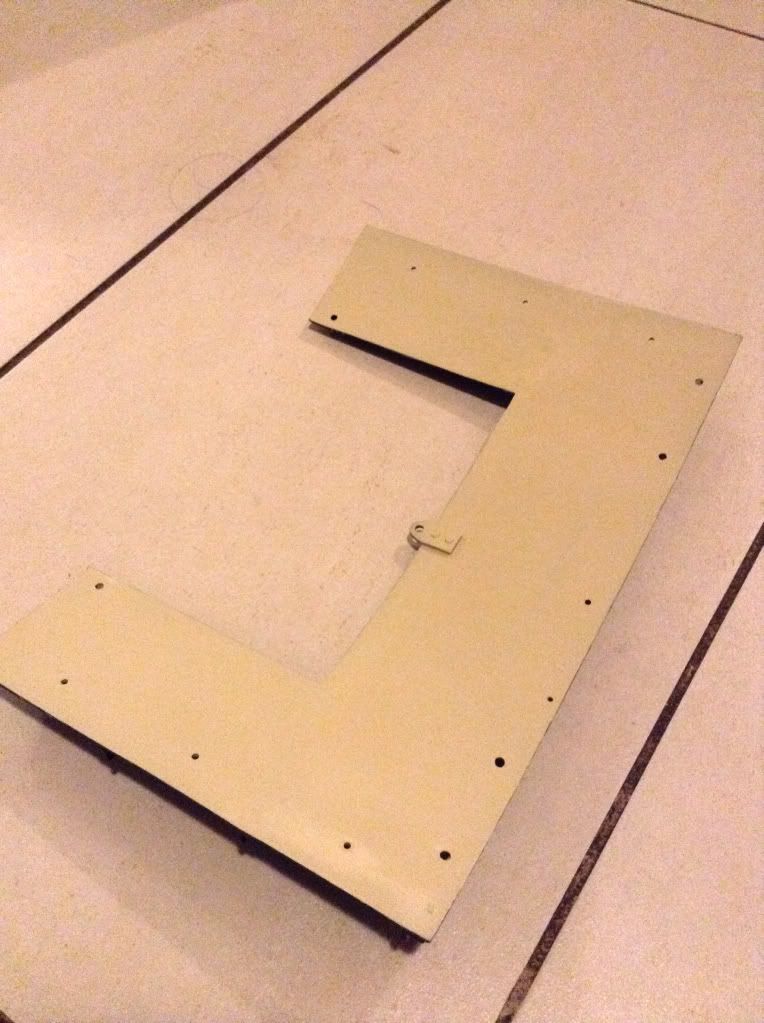

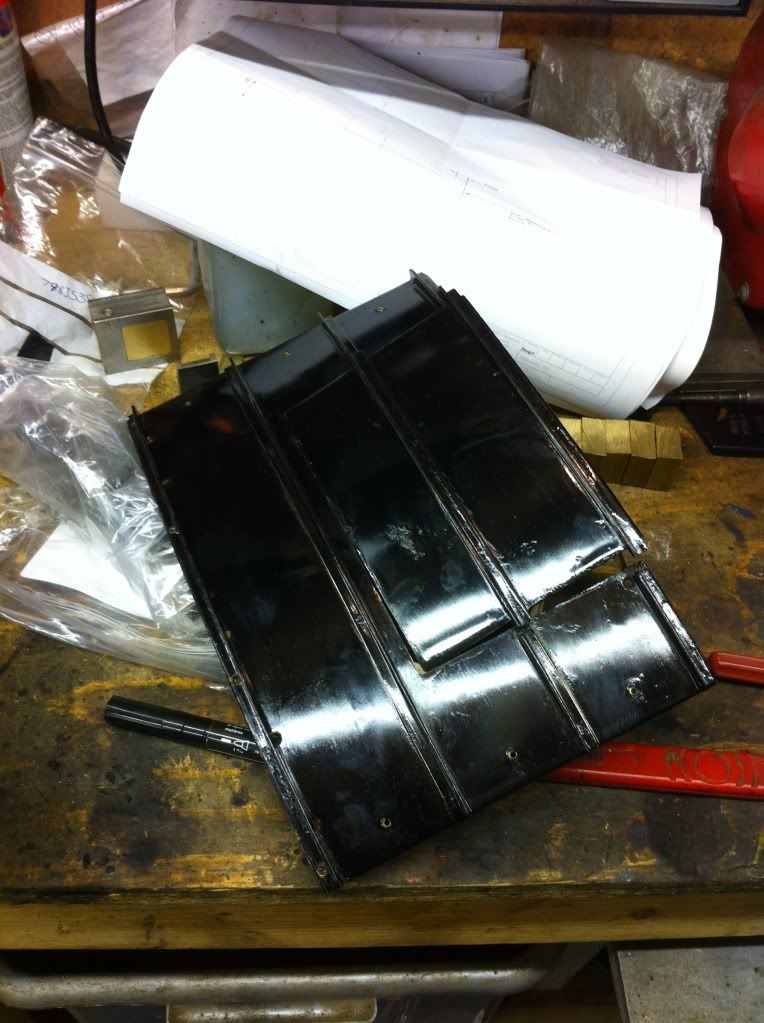

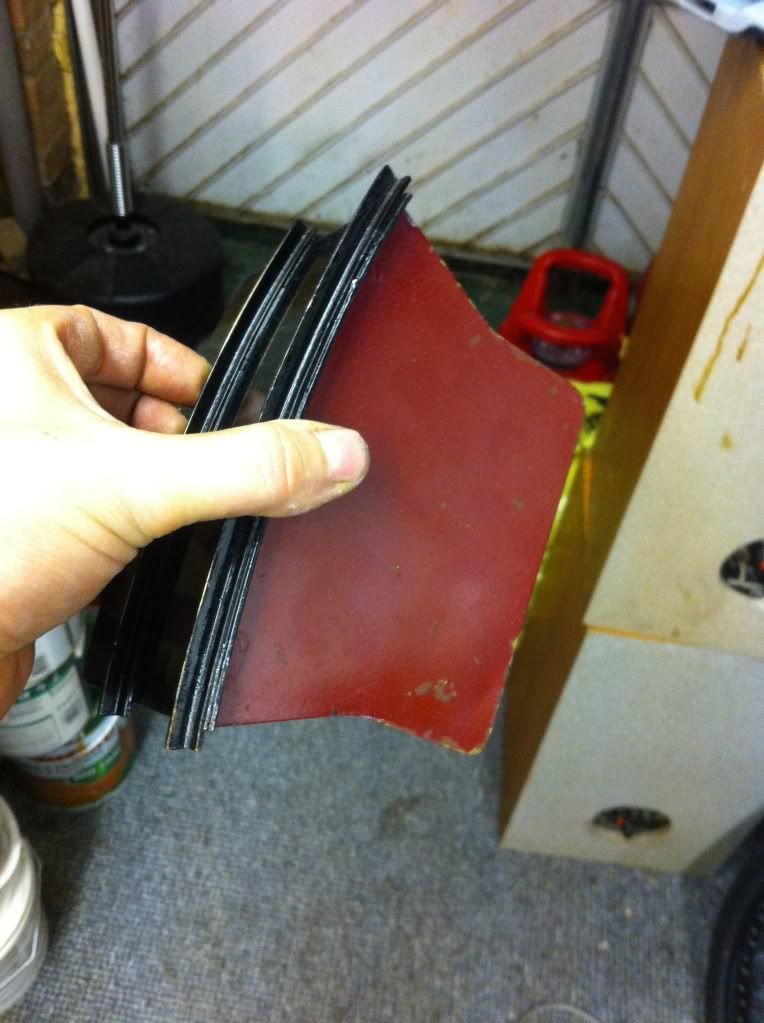

The roof panels now removed I have only recently painted them but as I am going for the "Full Monty" I may as well strip them too :p

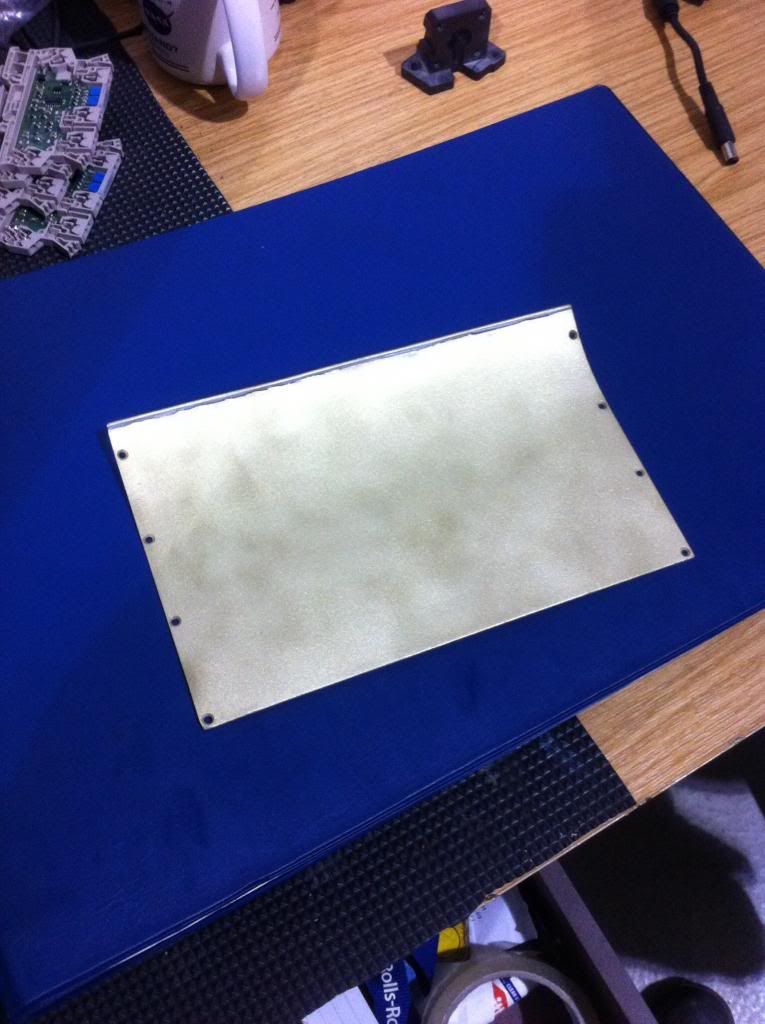

The removable panel this is the bit that gets removed when driving 3 different paint colours on it so should be interesting

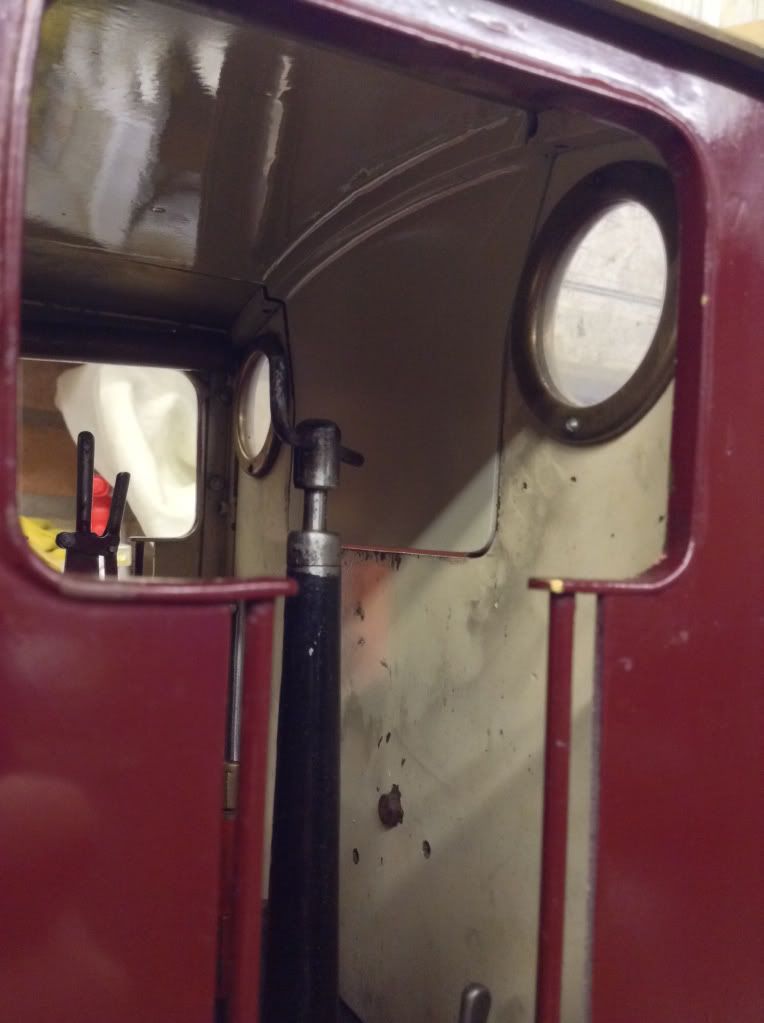

As you can see the inside of the cab is kind of cream coloured I will go with something similar maybe a little darker

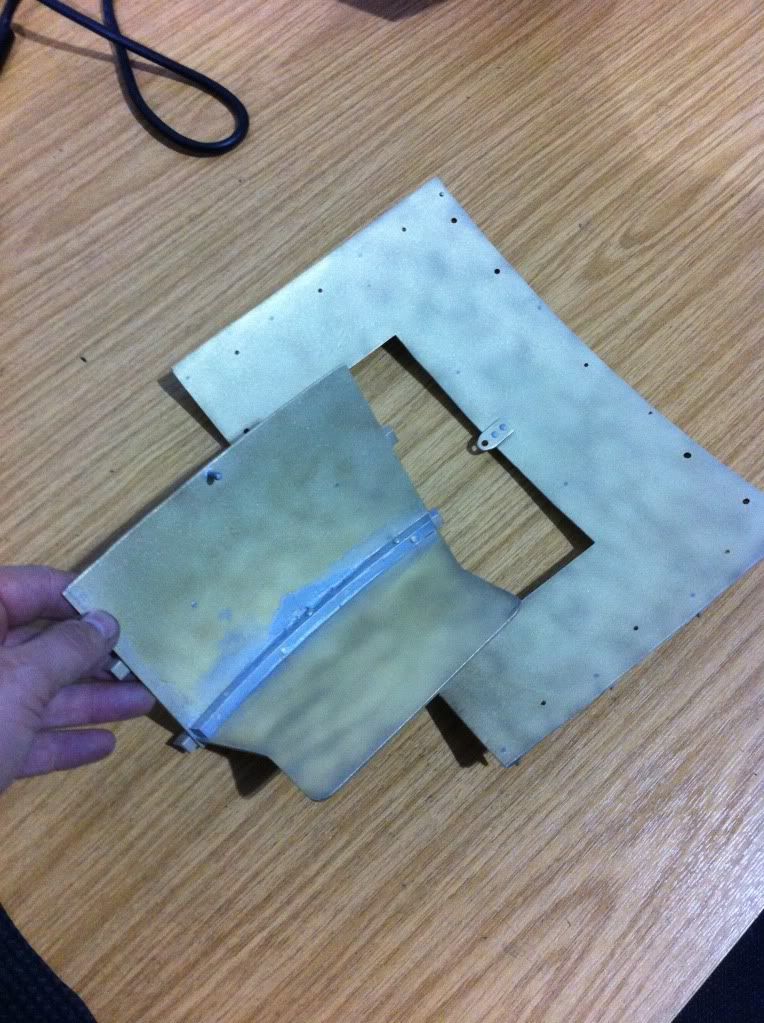

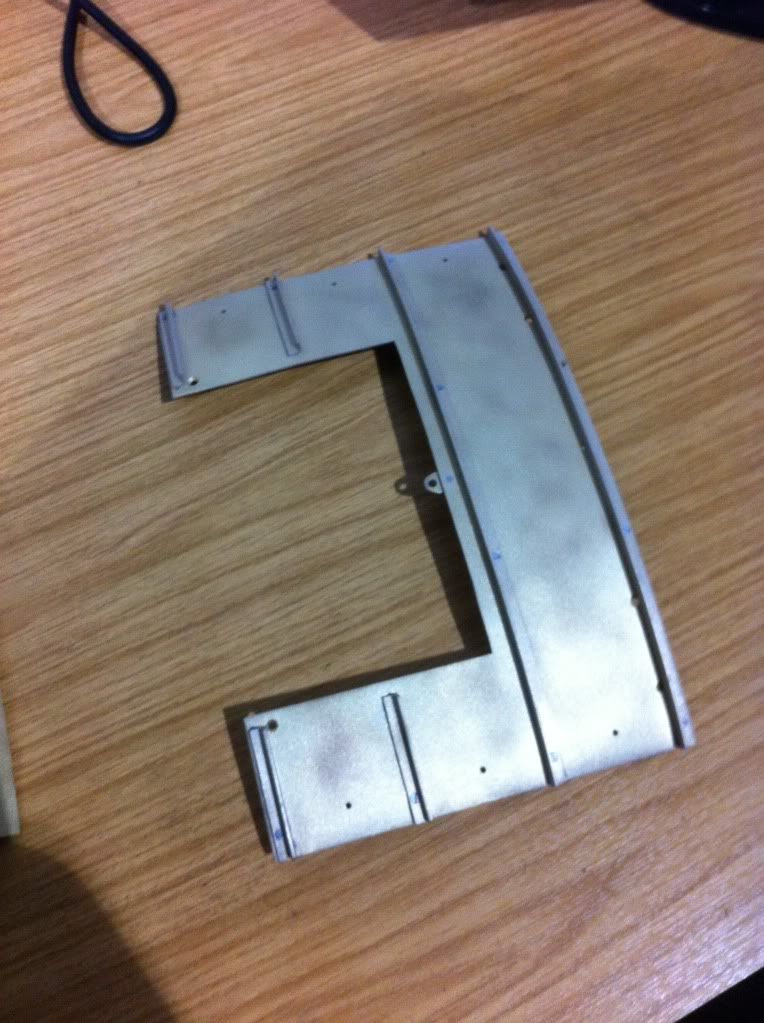

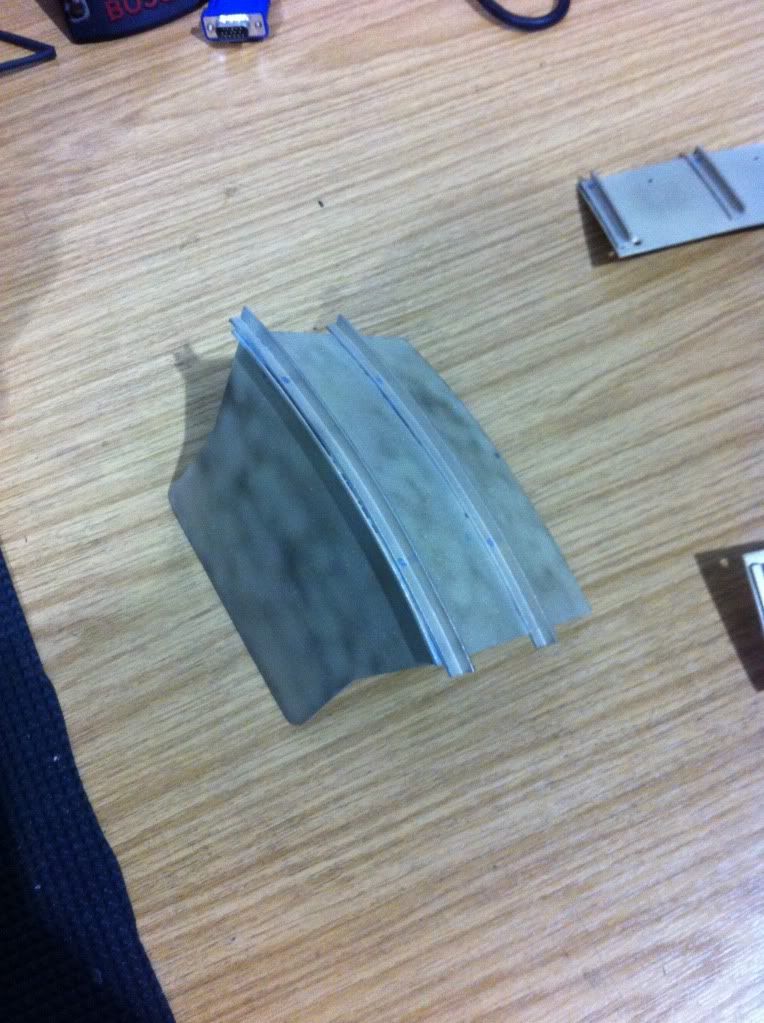

The roof stripped of paint
The paint pretty much fell off which confirms that the adhesion is not that good so hopefully the acid etch will grab it better :)
EDIT;
a little lunchtime research shows up that prototypes tended to have cream/beige roofs and walls from waist level up
and black on the bottom parts this makes total sence to me as it would almost definately end up black any way from all the soot and coal so i am going two tone! :D
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby 34053 » Thu Nov 07, 2013 4:11 pm

Thank you, Dougs. I'm sure it must be very satisfying to see the painting work progressing. (At SLL, our Locomotives get 5 Top coats).

PW
User avatar
34053
BAE Hawk
BAE Hawk

Posts: 2425
Joined: Fri Oct 24, 2008 1:44 pm
Also Known As: Papa Wedgy

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Thu Nov 07, 2013 10:58 pm

34053 wrote:Thank you, Dougs. I'm sure it must be very satisfying to see the painting work progressing. (At SLL, our Locomotives get 5 Top coats).

PW

that made my knees go weak :-o
the paint I have got cost £38 and its only enough for 1 and a bit coats
add the cost of the filler and primers its quite a costly job :-o

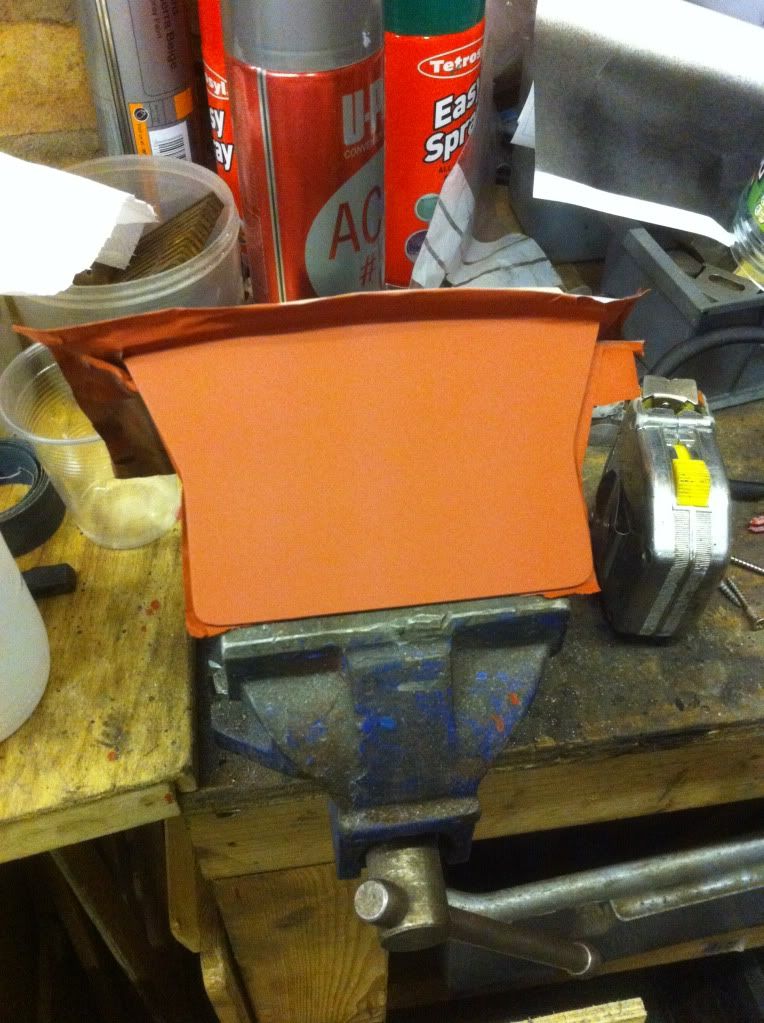

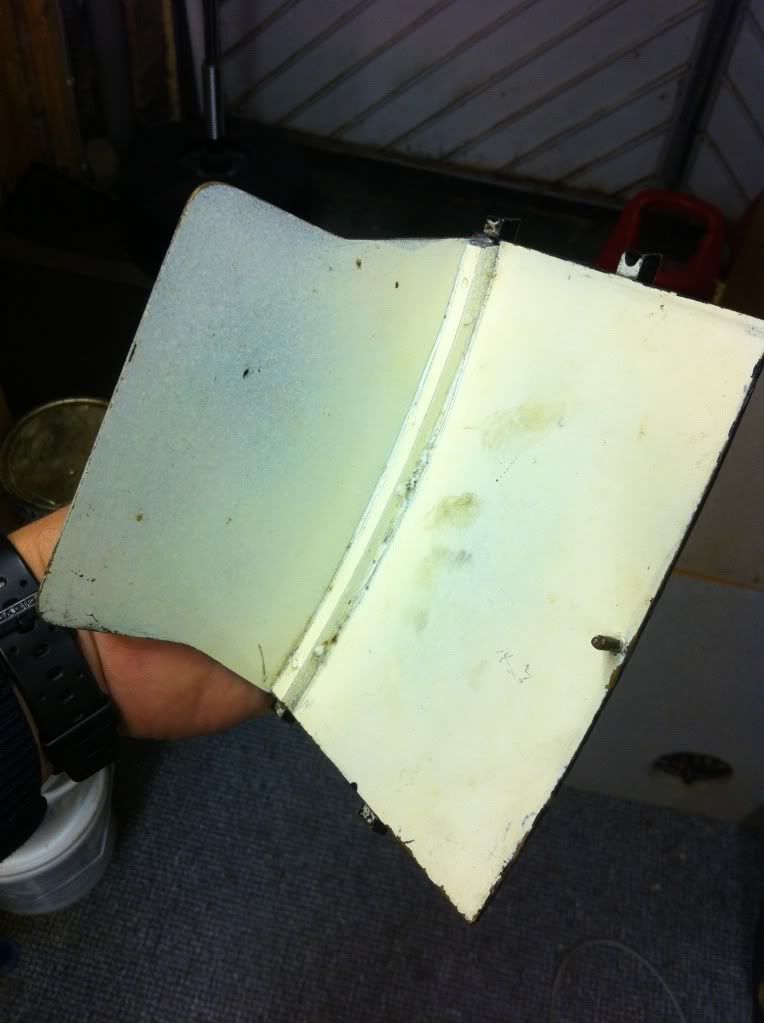

Ok so the original cab colour is
The new colour

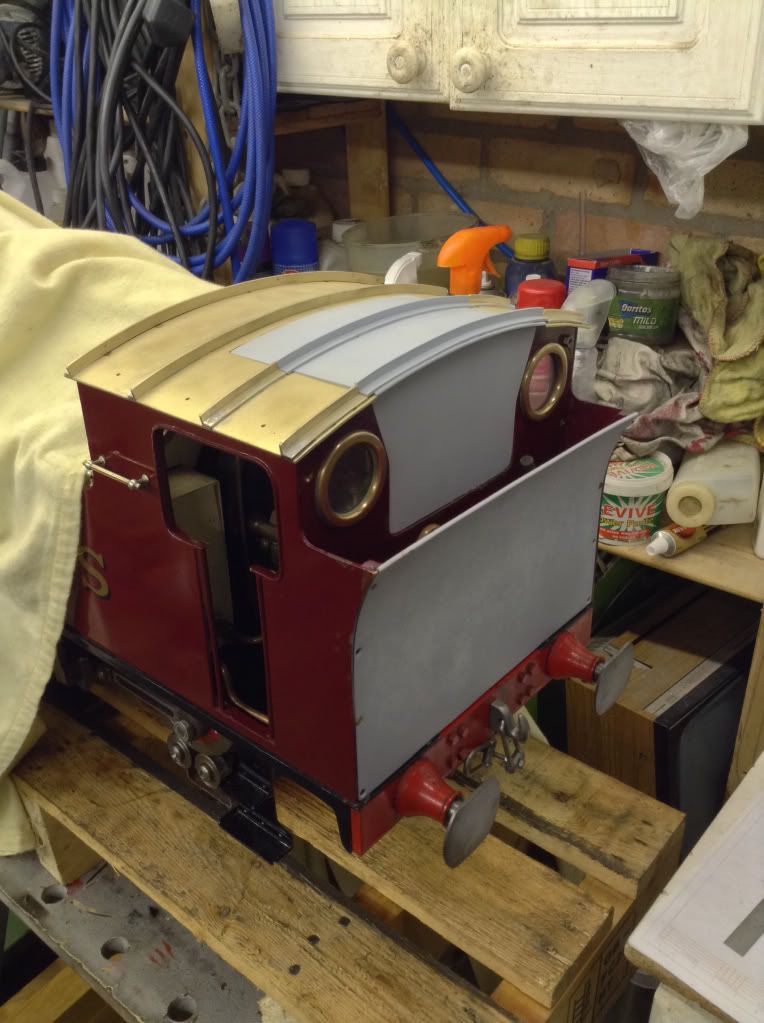

The match is much closer than it looks see the roof fitted

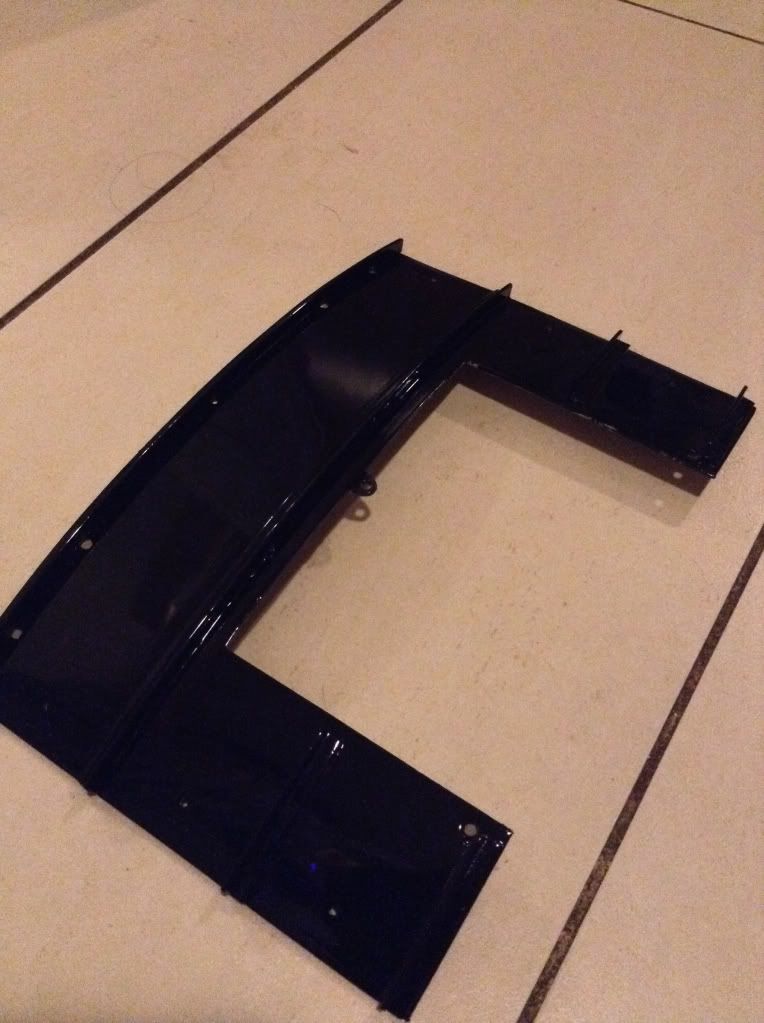

And a quick pic of the panels so far
TBC
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby 34053 » Fri Nov 08, 2013 1:56 pm

Looking good, Dougs.

PW
User avatar
34053
BAE Hawk
BAE Hawk

Posts: 2425
Joined: Fri Oct 24, 2008 1:44 pm
Also Known As: Papa Wedgy

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Sun Nov 10, 2013 7:56 pm

Been busy again painting and stripping

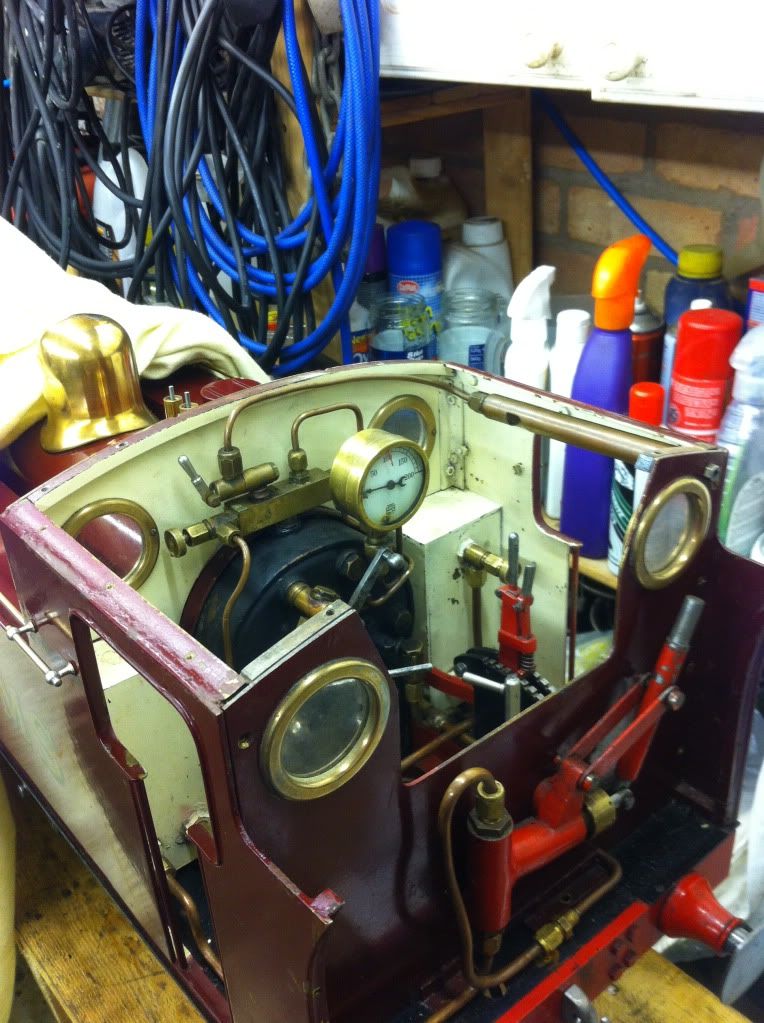

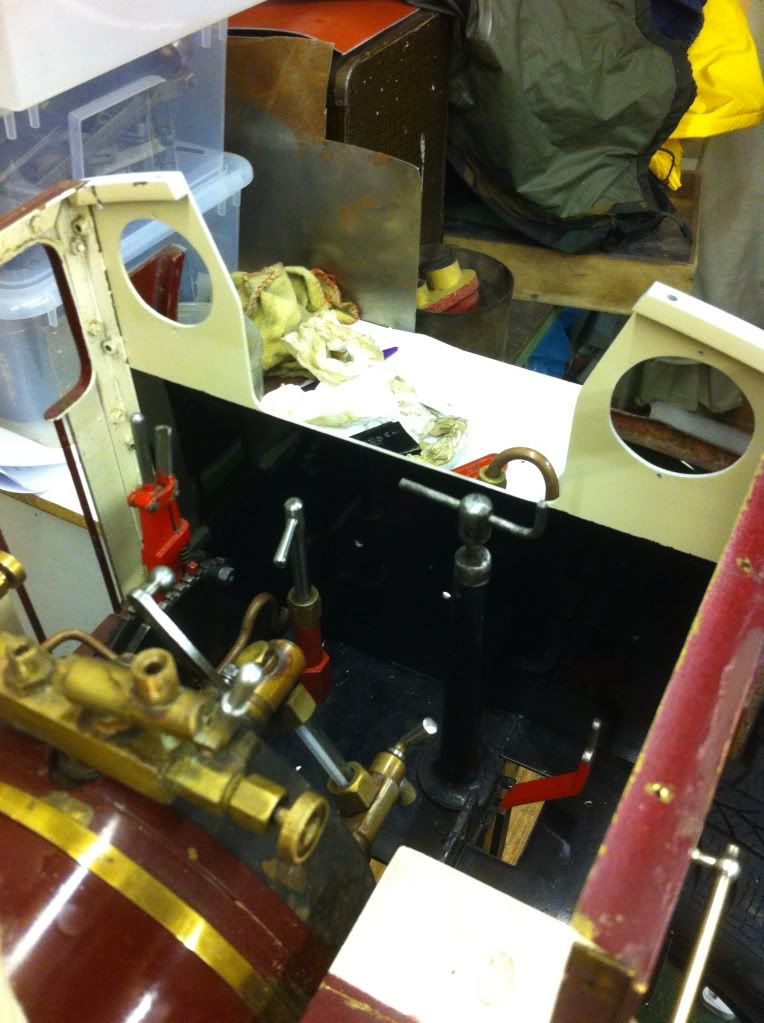

The cab with front and back spectacle plates removed

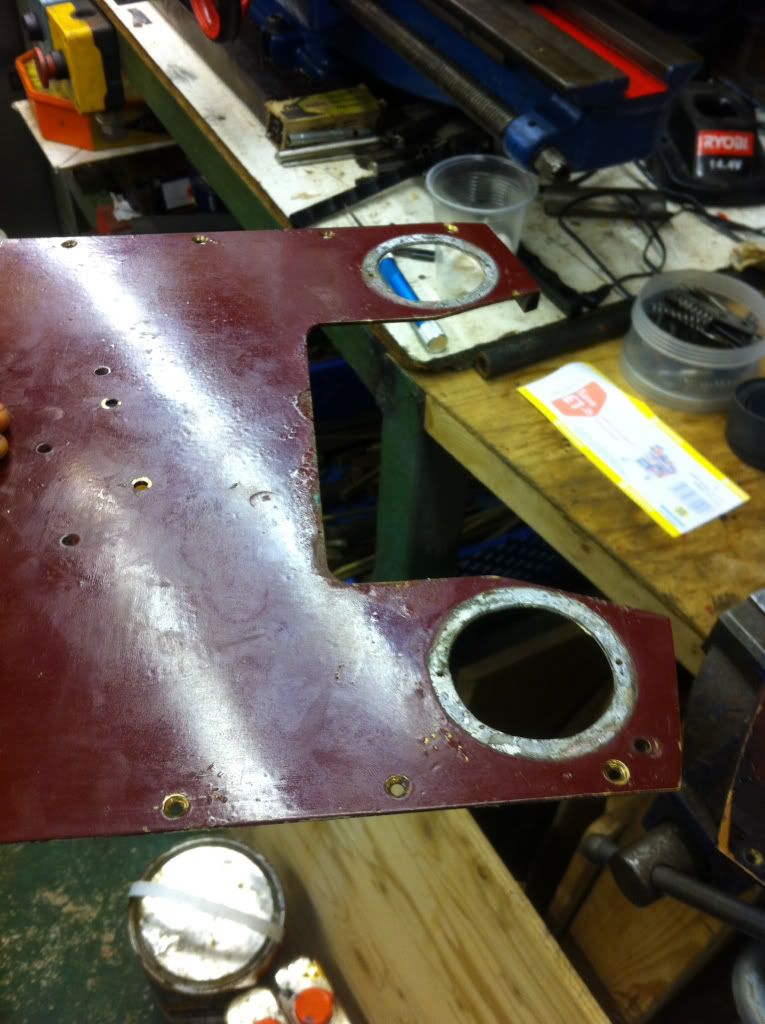

Rear spectacle plate with windows removed darn things were soldered on ~x( this pic shows how bad the paint has become

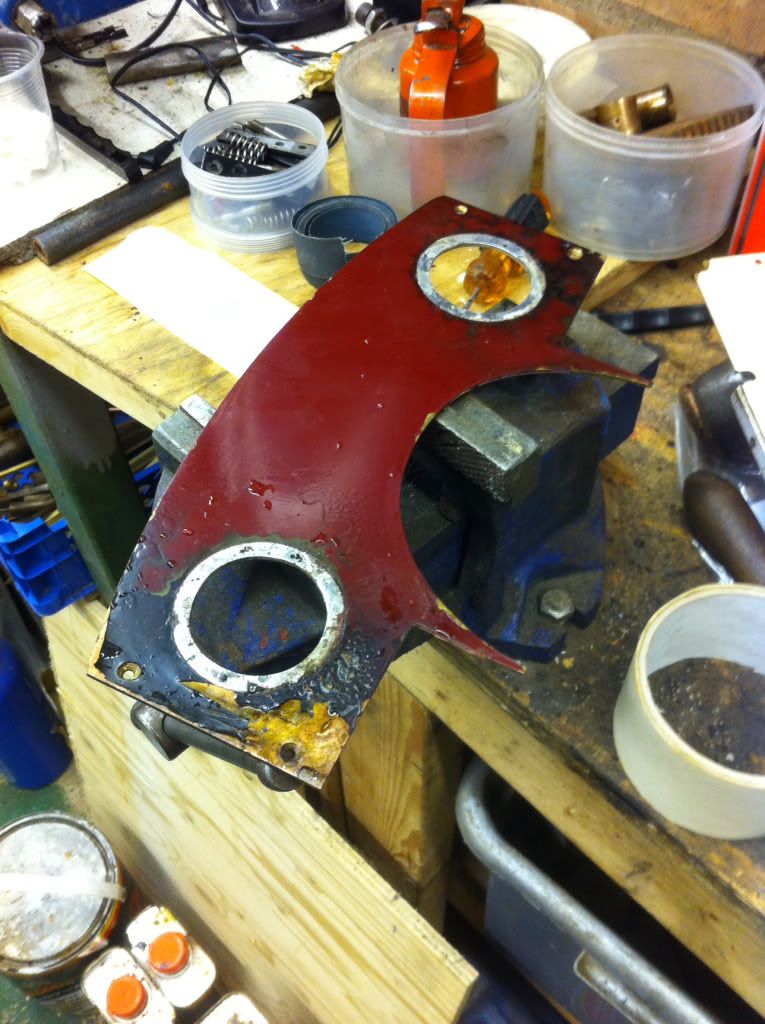

Front spectacle plate with the windows removed with a blow lamp

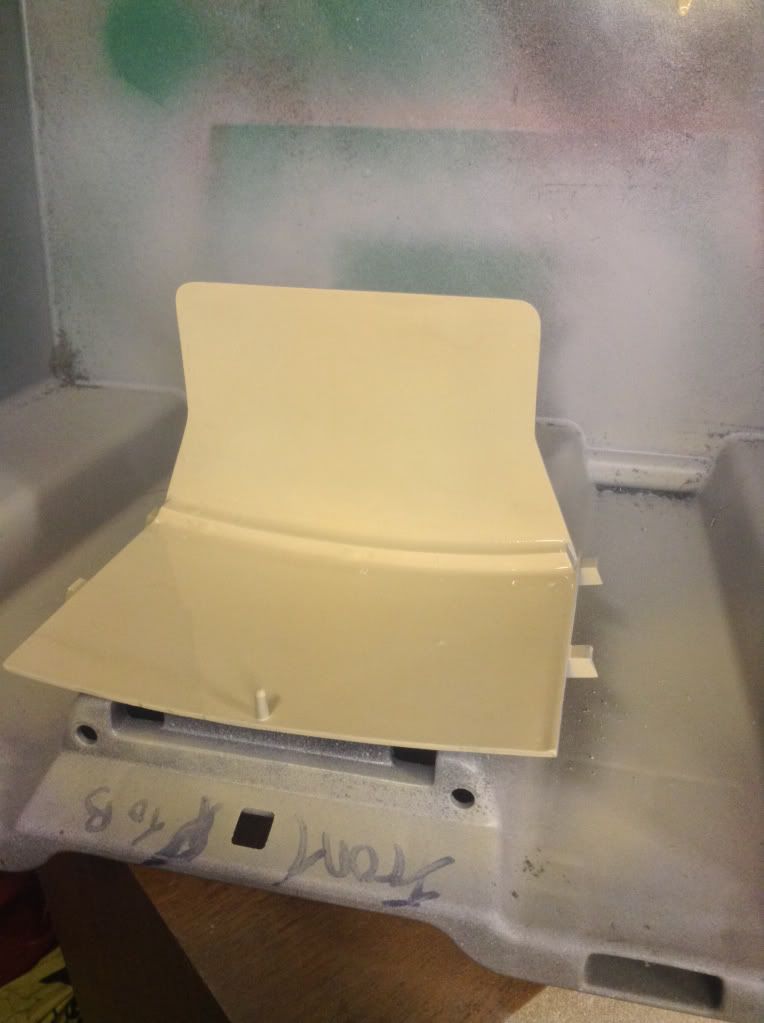

The main roof finished this is the first complete new painted part! I am very happy with the new paint job it looks awesome
The photo's don't do it justice it will look amazing when complete :D
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby 34053 » Sun Nov 10, 2013 8:09 pm

Thank you Dougs. Keep up the Good Work. :) :)

PW
User avatar
34053
BAE Hawk
BAE Hawk

Posts: 2425
Joined: Fri Oct 24, 2008 1:44 pm
Also Known As: Papa Wedgy

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Wed Nov 13, 2013 10:13 am

Bit more progress

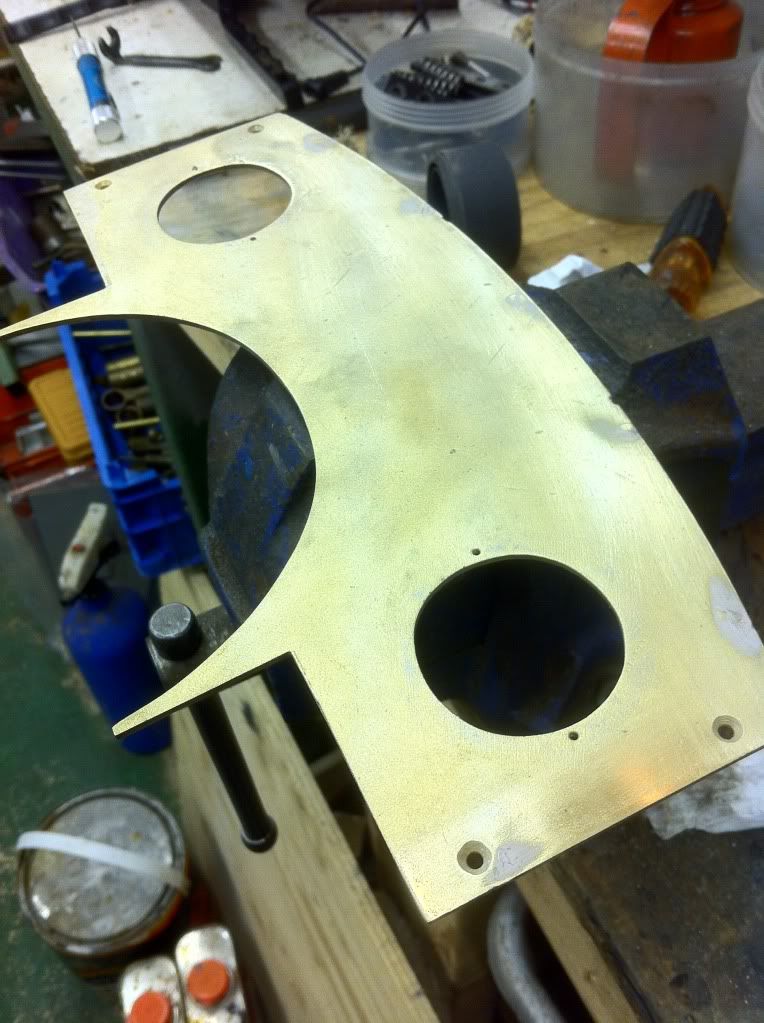

first front specticle plate blasted and filled ready for primer

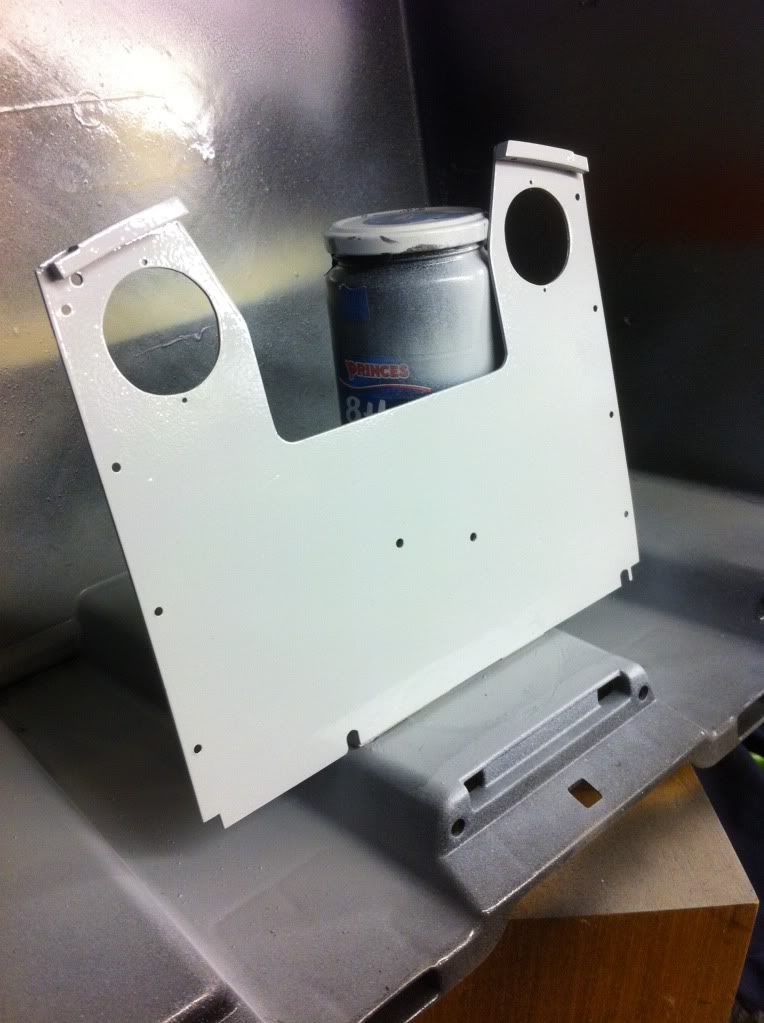

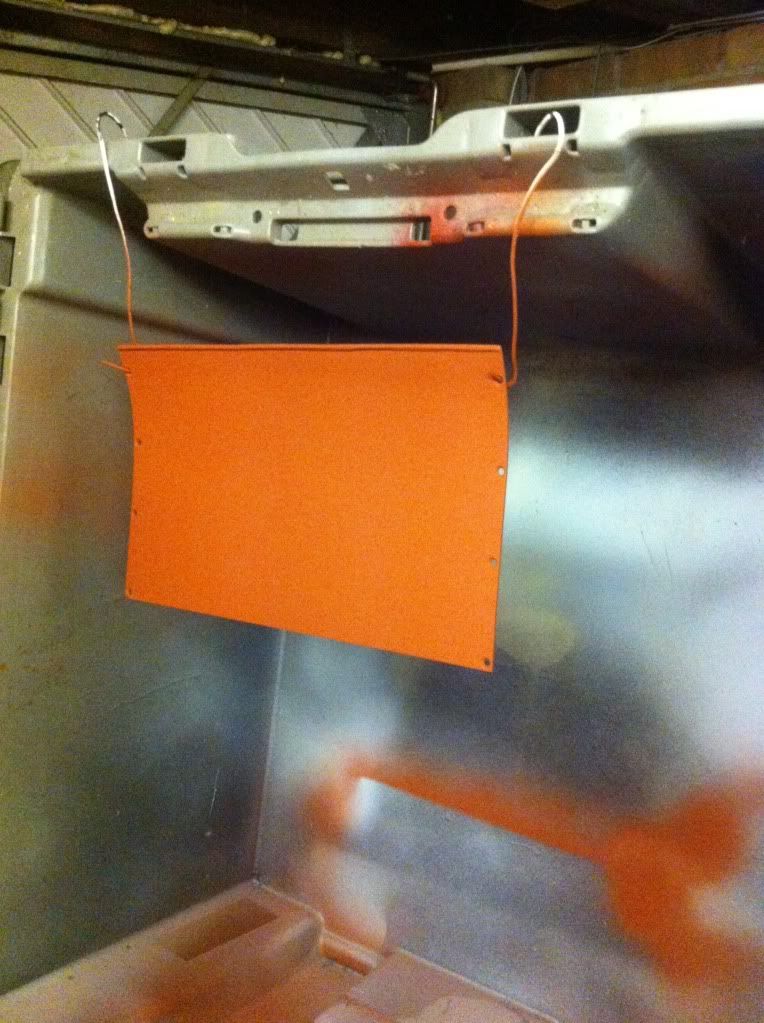

rear cab wall just after a coat of etch primer

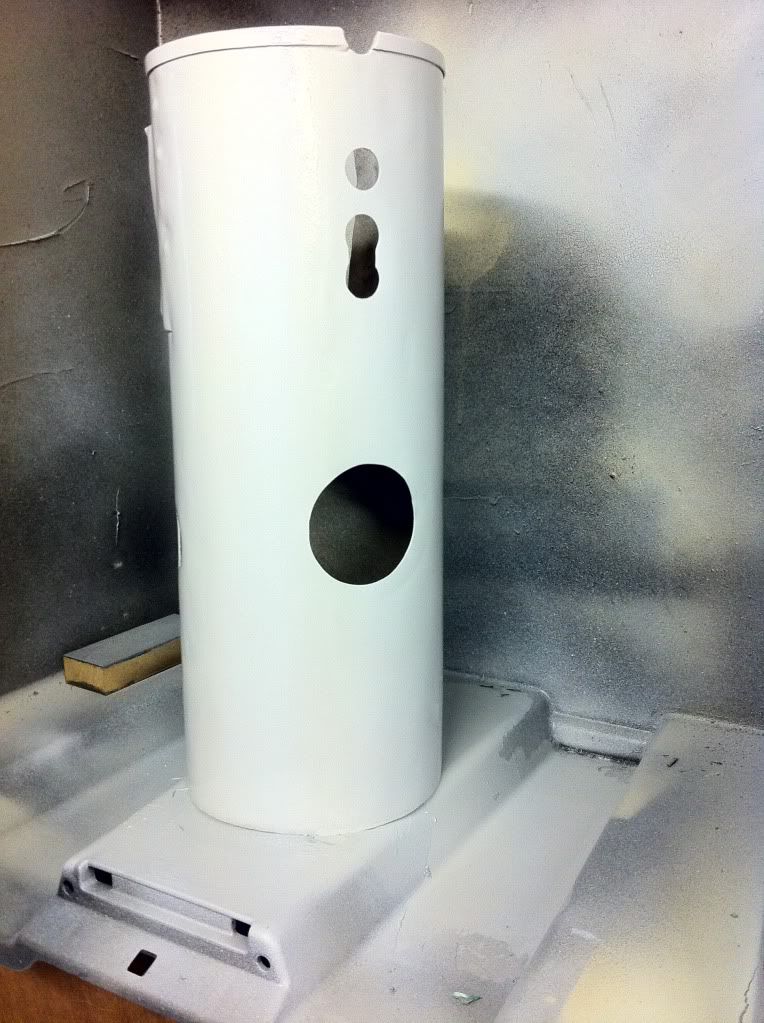

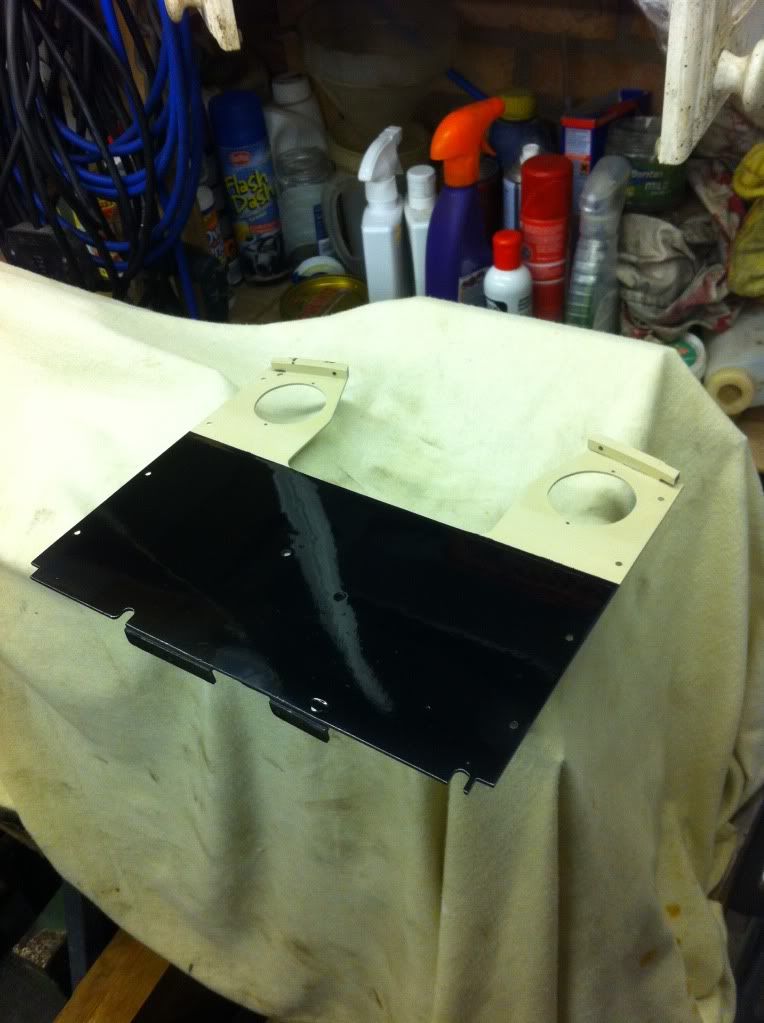

and after the inside paint finishes have been applied the black is the same as the roof (a very hard wearing 2k acrilic) this shows the design i have gone for black upto waist height and cream above

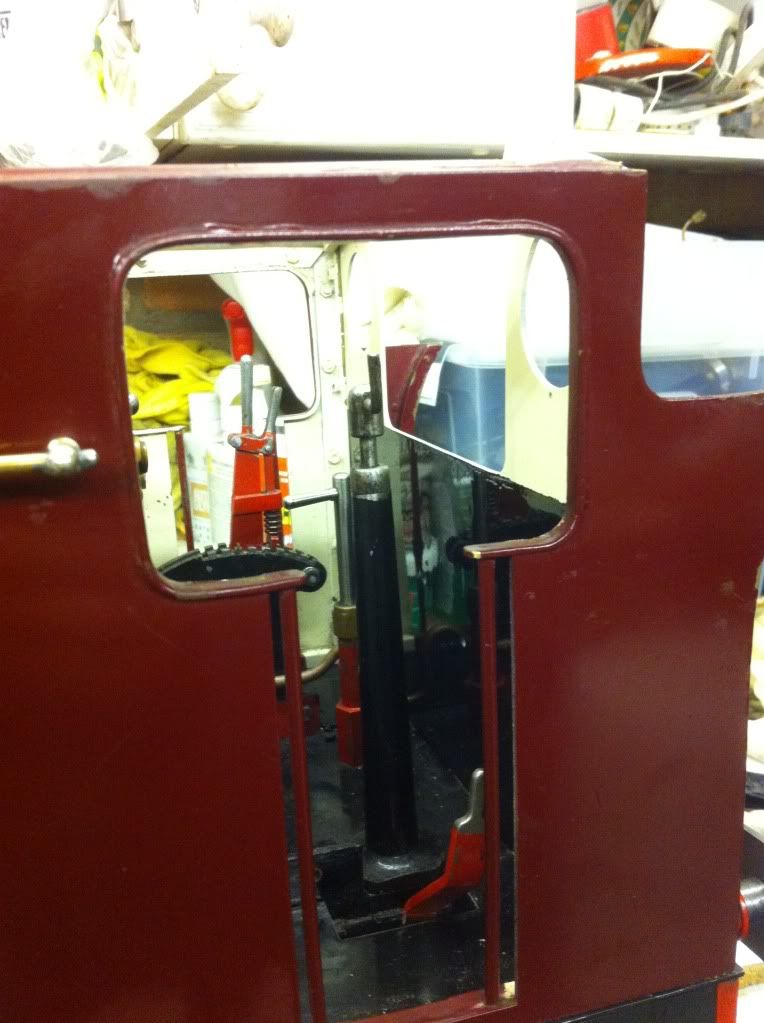

and what it looks like fitted
I havent done any of the external paint yet as I thought it would be best to try and do it all in one go so i dont waste any and can do a few coats. I am really happy with my new spray gun its brill no runs at all and have a nice even spray. :)
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby 34053 » Wed Nov 13, 2013 2:16 pm

Such a difference ('before' and 'after') already. Well done Dougs!

PW
User avatar
34053
BAE Hawk
BAE Hawk

Posts: 2425
Joined: Fri Oct 24, 2008 1:44 pm
Also Known As: Papa Wedgy

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Sun Nov 17, 2013 3:28 pm

Progress is still ongoing the boiler is now off and I can see the fault with the lubrication pump more on that later
Boiler removed
I removed the boiler cover very carefully as it had an Asbestos jacket and I didn't want to take any chances so it got bagged and went in the bin I will use a more modern fibre insulation material when I rebuild

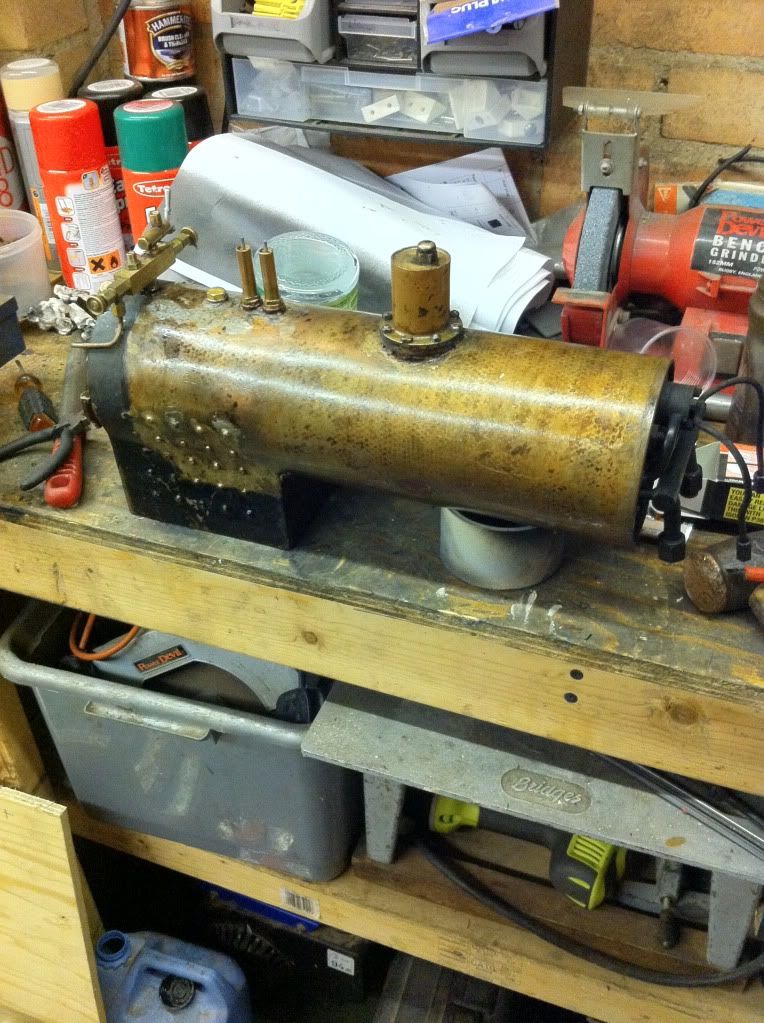

The boiler in the buff

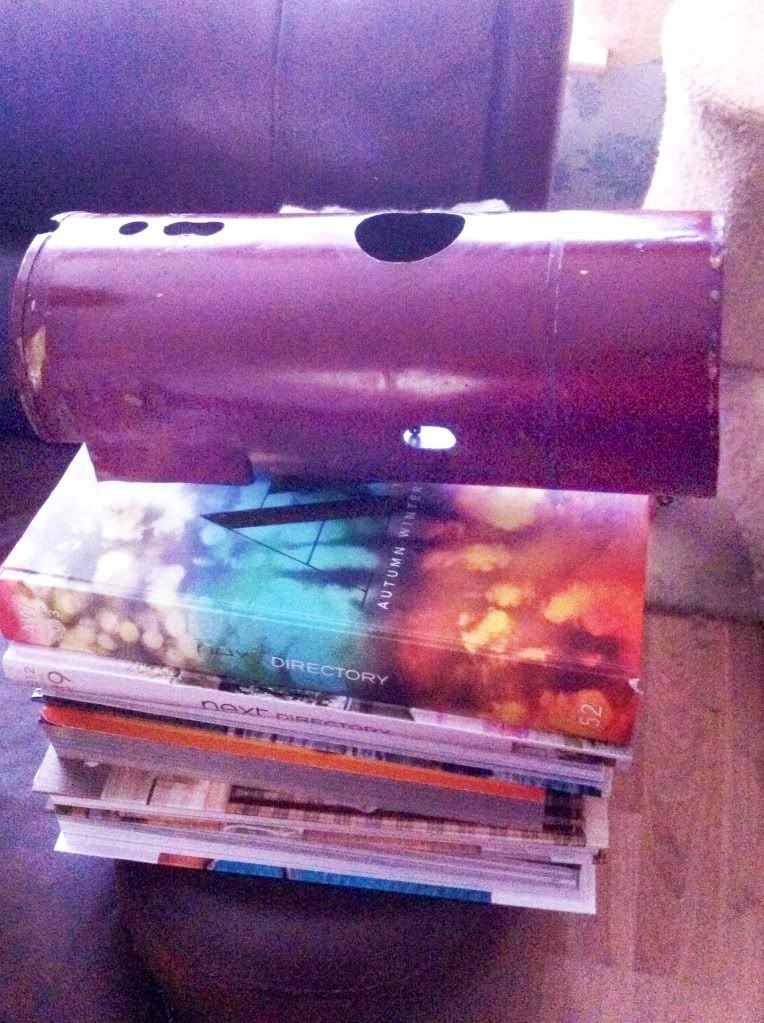

The boiler jacket rolled up like old lettuce when I shot blasted it I think its because it was annealed so I had to straiten it out once it was stripped back
And another shot
Good news on the spray and rebuild I have secured some funding for my little hobby so it all should come together better now the cost is so expensive the repaint is costing well over £100 alone so I am happy now the money comming in to my saving pot will cover this and make a good start to the cost of a boiler for my other loco which will cost me at least £500 to build. :)
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Vulcan Bomber » Sun Nov 17, 2013 10:30 pm

Dougs wrote:................ and make a good start to the cost of a boiler for my other loco which will cost me at least £500 to build. :)



My boiler for the 9f will be at least 3 times that much!!!!! Scary stuff.

Your painting skills look pretty good to me.
User avatar
Vulcan Bomber
Lockheed F-104 Starfighter
Lockheed F-104 Starfighter

Posts: 332
Joined: Mon Mar 30, 2009 2:19 pm
Location: The home of Whittle's engine.

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Mon Nov 18, 2013 9:48 am

Vulcan Bomber wrote:
Dougs wrote:................ and make a good start to the cost of a boiler for my other loco which will cost me at least £500 to build. :)



My boiler for the 9f will be at least 3 times that much!!!!! Scary stuff.

Your painting skills look pretty good to me.

thanks I am still learning what I can/cant do or get away with ;)
TBH VB your loco is Epic in size though, the boiler is about half as much again bigger as my GWR "standard 10 k class boiler"
I have to admit I am very scared to start building the boiler as mistakes are VERY costly although I am assured faults are rarely unfixable. the whole new build is on halt at the moment anyway as I am putting all my efforts into my "running" loco to get it up to scratch and reliable. Also I am still learning alot about running and repairing a loco which will hopefully feed into the new build design :)
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Tue Nov 19, 2013 9:46 am

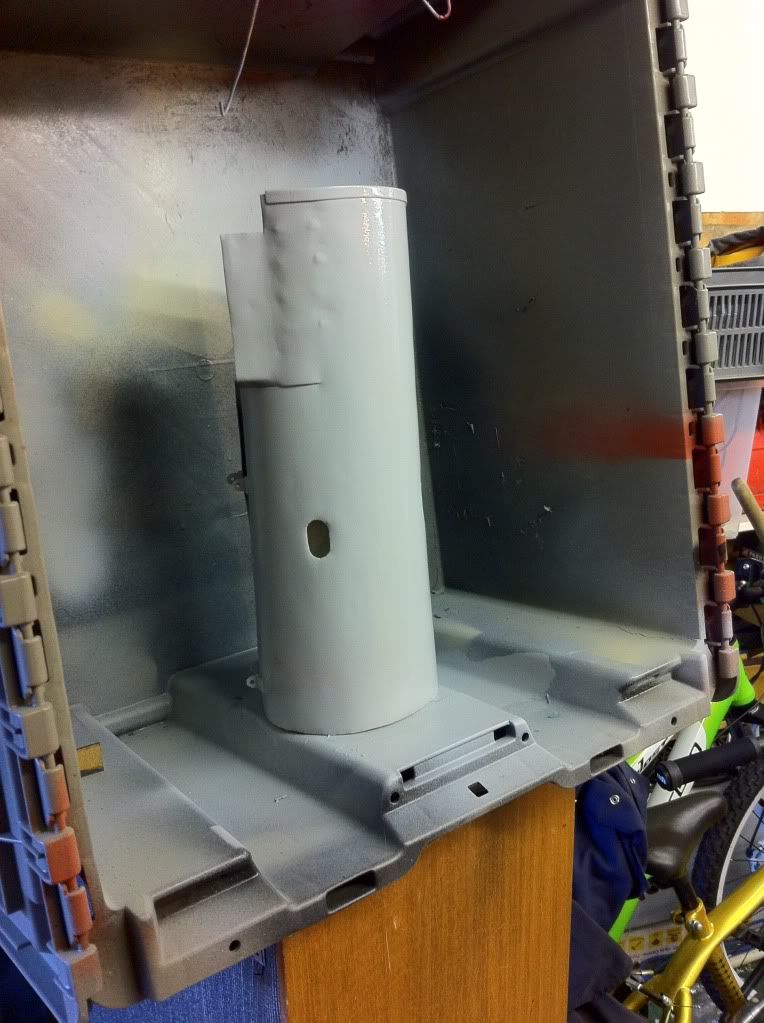

The first two pannels are ready for top coat
The removable roof section
And the bunker back plate
Just a couple of days drying and I can shoot the first coat of colour \:D/
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

PreviousNext

Return to History Past and Present

Who is online

Users browsing this forum: No registered users and 0 guests
