Postby Dougs » Mon May 20, 2013 8:59 pm

I have always been interested in all things steam right from being a small child looking under a blanket at one of my great grandfather's live steam loco's and now 42 years after it was built (two years before me!!) I have been given it, so I thought I would photo and report my progress as I know there are a few people here that have similar interest.
The loco as it is has had no maintenance or use for 30+years
First job is going to be a monster cleanup job :) :D really looking forward to this.
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby 34053 » Mon May 20, 2013 9:16 pm

I am really impressed. What a fantastic piece of engineering. I hope that you can eventually get it back into 'full working order'; be great to have it working again. Please keep us up to date with your progress.
Thank you for sharing this with us.

PW
User avatar
34053
BAE Hawk
BAE Hawk

Posts: 2426
Joined: Fri Oct 24, 2008 1:44 pm
Also Known As: Papa Wedgy

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Hazzer111 » Mon May 20, 2013 10:44 pm

Wow :D :D looks great, keep us posted!
User avatar
Hazzer111
AgustaWestland Merlin
AgustaWestland Merlin

Posts: 165
Joined: Thu Feb 02, 2012 4:22 pm
Location: Bomber county

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Mackrick » Tue May 21, 2013 7:13 pm

Model engineering at its best...... A task and a half there please keep us updated.
Duc, sequere, aut de via decede
User avatar
Mackrick
Moderator
Moderator

Posts: 9423
Joined: Mon Oct 13, 2008 7:36 pm
Location: Doncaster South Yorkshire

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Tue May 21, 2013 8:01 pm

I have given it a good clean before I started to strip it down. It will look great when its all cleaned up.
Right on to the interesting stuff
First off is the cab roof and the back wall of the bunker exposing the hand waterpump

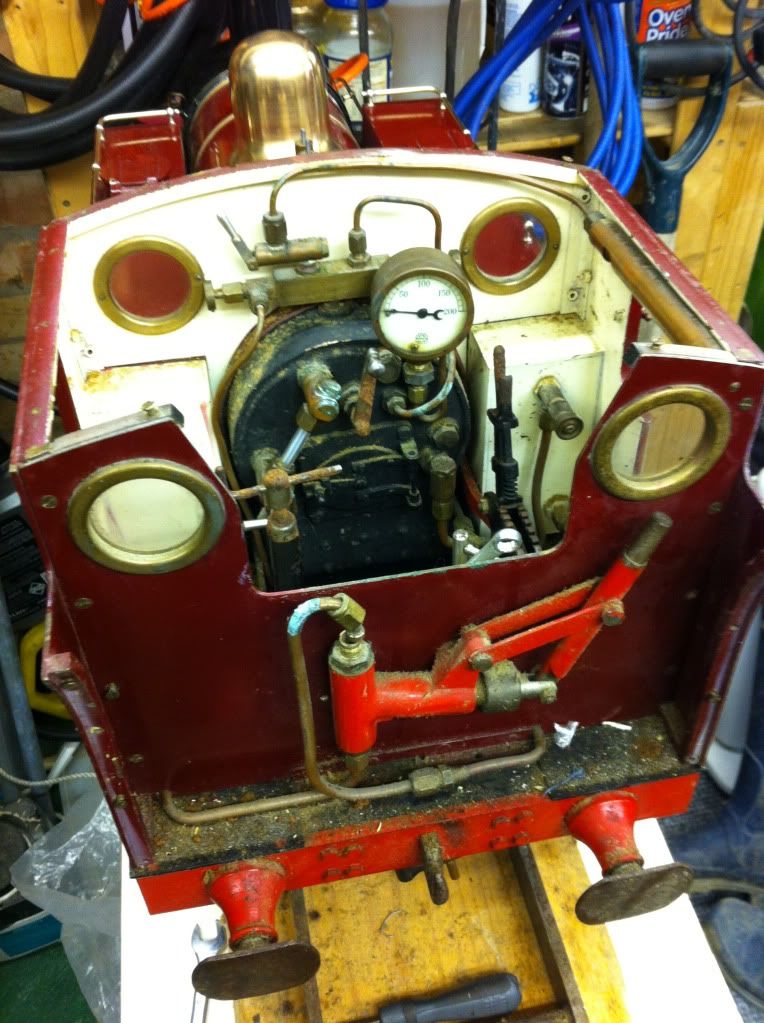

Next came the cab back wall and the front wall
I thought I would oil everything up and put some air on before I disconnected any of the pipes after a shaky start it started to turn over, tried the regulator and the forward and reverse all working well
The corrosion is quite widespread in the cab the only way to clean it up is to remove everything and rebuild it

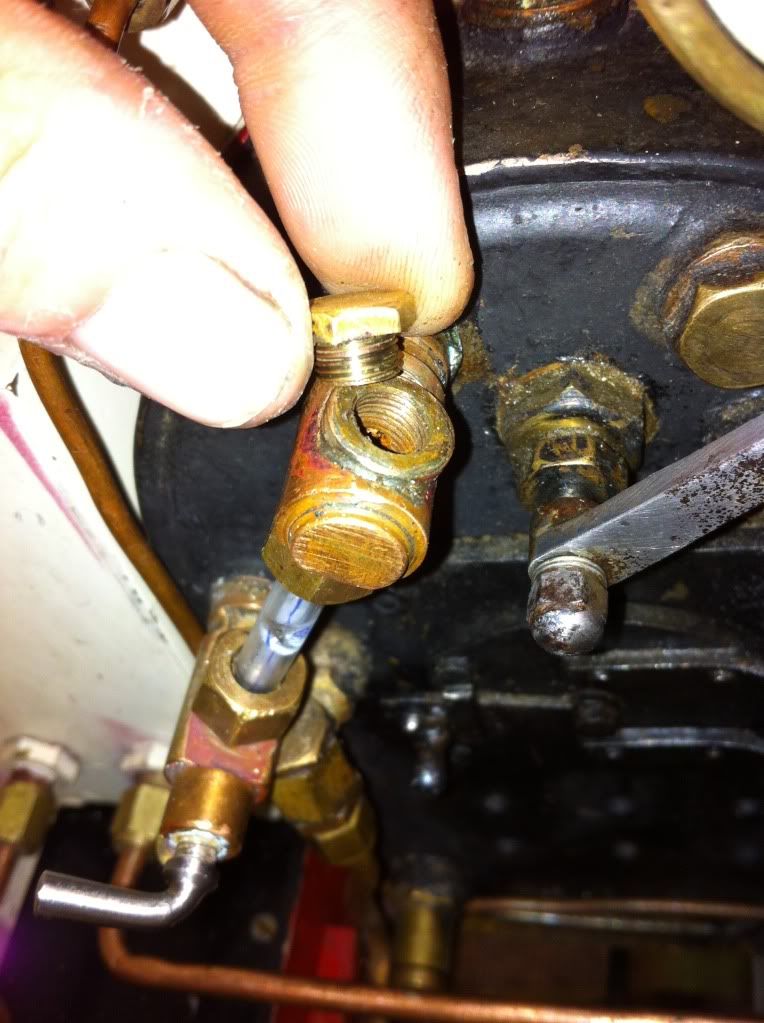

Bit of a pipe jumble, I hate this sort of thing (can't remove the pipe until I have removed another pipe)
All the pipes removed showing pretty obviously the stainless steel parts ( the only non corroded parts)
I am very tempted to remake parts in stainless

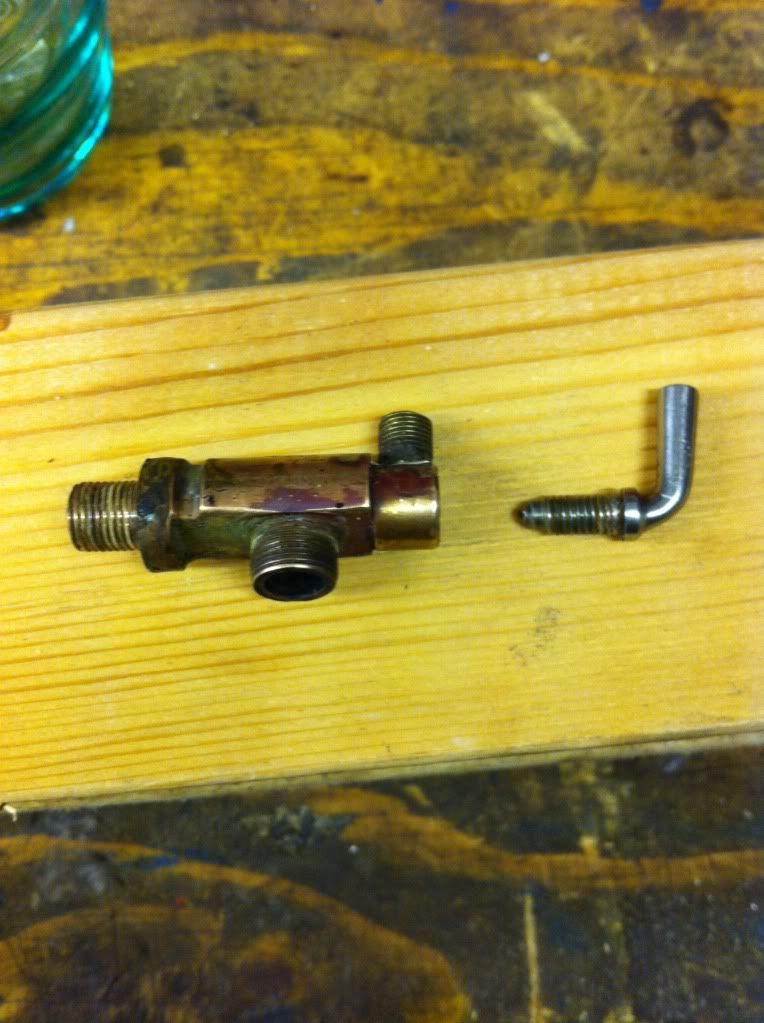

Next came the injector this is the only part I have found that is not bolted up to the frame rails and to be honest the pipe work looks 'a bit rushed' compared to the rest of the model, I have to think this was an addition that was left in a test phase.

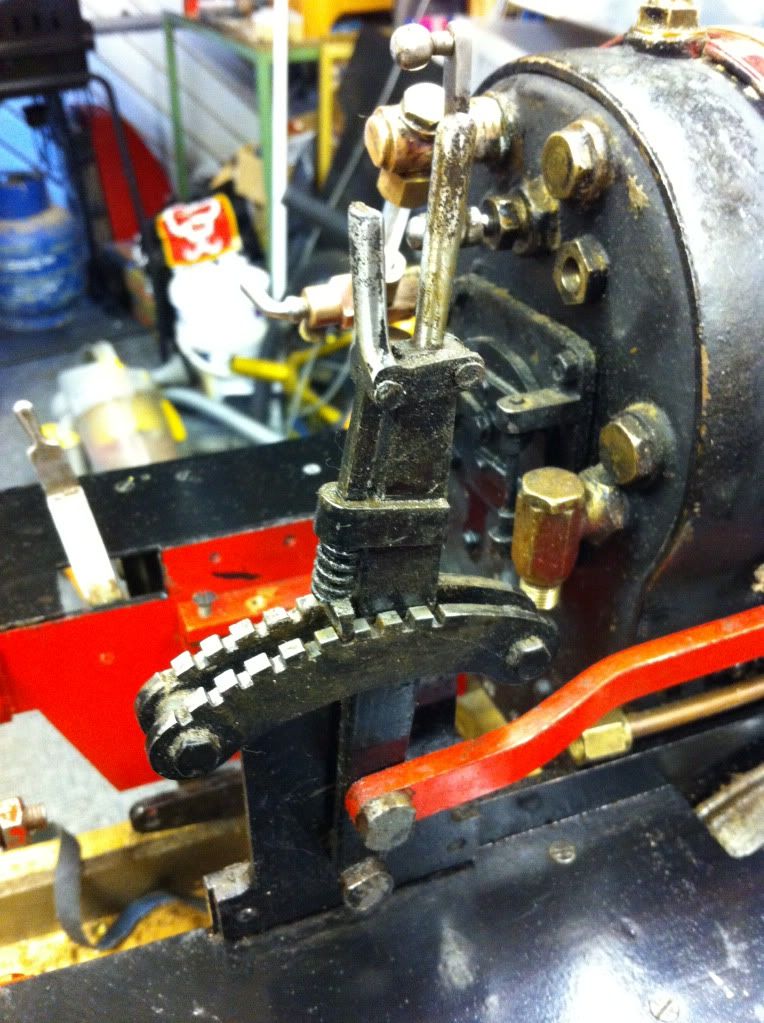

The cab totally striped out and water tube cleaned up and regulator Handle de corroded
One job that needs doing the fire grate catches on the bottom of the fire box I will have to see to this next
To be continued
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby RLN » Tue May 21, 2013 8:30 pm

Marvellous project. Please keep us up to date.
User avatar
RLN
Moderator
Moderator

Posts: 15709
Joined: Sat Oct 04, 2008 2:13 pm

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Ramshornvortex » Tue May 21, 2013 9:03 pm

That looks like the Martin Evans designed 'Simplex', built by model engineers all over the world over the last 40 odd years. My father built a Simplex before moving back to 5" GWR models once he had finished Simplex.

There is a brilliant website written by real enthusiasts that should provide you with any help or advice you need with your inherited Simplex engine: http://freespace.virgin.net/simplex.steam/
User avatar
Ramshornvortex
Lockheed F-104 Starfighter
Lockheed F-104 Starfighter

Posts: 341
Joined: Tue Dec 30, 2008 6:11 pm
Location: Northamptonshire

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Tue May 21, 2013 10:18 pm

Thanks for the link lots and lots of cool stuff there. The model is called "Butch" it's very similar looking to the simplex but the boiler is way more complex. My great grandfather completed 2 loco's the first was a 3.5" guage "Maisie" this one came next and only got used once, he then went on to start a third, a 5" guage "Speedie" which only has frames and wheels so prob. About 1/3 complete. Requires a boiler etc. my grandad still has this in his workshop. I plan to finish it one day but we decided it would be wise to start with this refurb first, as I have only ever built a stationary engine before this.
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Mackrick » Thu May 23, 2013 7:13 pm

Keep the updates coming please this is really interesting.
Duc, sequere, aut de via decede
User avatar
Mackrick
Moderator
Moderator

Posts: 9423
Joined: Mon Oct 13, 2008 7:36 pm
Location: Doncaster South Yorkshire

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Thu May 23, 2013 10:13 pm

Ok I had I choice to make remove the boiler or not. My grandfather told me that it was an awful job ~x( and I know I would need to take it off to get it tested at some point in the future, so with keeping the boiler on the frames in mind I continued with the strip down
First off the side tanks had to come off to remove the dust and check for corrosion
Lots and lots of dust and debris
Cleaned up pretty well
Most of the corrosion is concentrated in the cab area here I have made a start on the reversing lever
Lots of dirt under the boiler on the double acting waterpump on the right and the mechanical lubricator on the left which is an absolute gem of engineering it has two tiny pistons working from an little ratchet system
Ok onto the boiler issue I tried to put air on again to circulate some more oil so I loaded all the lube points up and noticed the rear horn blocks (axel) was not getting any oil so decision made the boiler was coming off, and wow it was soooo easy, my grandfather has clearly never had to work on the machines I work on every day, it was done in five mins.
Cleaned out the smoke box and modified the door a little to give better access later on

Cleaned up all the link bars and pumps having had a good look at the fire grate it looks ok and I am going to leave it as is for now

The last two shots show before and after shots of the rails I have straitened the boiler feed pump pipe
To be continued (rebuild and test)
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Sat May 25, 2013 7:19 am

While the boiler was off I decided to pump it up to test pressure (water test) to check for leaks unsurprisingly I didn't find any. I also got the last boiler test cert from 1980 it never ran after that any way so it's not had a hard life.
My lad popped in to see the progress nice to see him leave his Xbox for five mins lol
I removed the pipe work from the double acting axel pump as this wild be the last pipework I would not be able to get to once boiler was back on.
Dropped the boiler back on the frames and fitted the right side tank this was tricky as it had a union right in the middle next to the boiler I had to use a plastic shim to hold the nut in place while I tightened up the joint
On to the left side this was much easier as It just dropped on
With the left hand tank fitted and the spectacle plate fitted it was starting to look very nice how ever there is still a lot of work to do
TBC
Next up water pipes and pump testing
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dan4th » Sat May 25, 2013 2:26 pm

All I can say is "WOW!".....

You have been handed what amounts to a
sacred trust, haven't you, Dougs????

I can TELL, though, you are more than up
to the task :ymapplause:

Two Questions:::::

1) Are there any screws, bolts or other fittings,
no matter how tiny, which require "Torquing"
to a certain tolerance, and if so, how do you
accomplish this on such a small scale?

Or is it all just by feel?

2) I see she's all mounted on a stand which
allows stationary running, but is there any
location where this loco could be run on some
sort of a circuit and actually "Locomote"?

Or would the inability to lay your hands/fingers
on the controls make this impossible????

Last of all, I've just GOT to say: I'M IMPRESSED!!!

Danf.
I like to do my planning retroactively!
User avatar
Dan4th
Boeing B-52 Stratofortress
Boeing B-52 Stratofortress

Posts: 14733
Joined: Thu Nov 06, 2008 9:42 pm
Location: Bangor, Maine, USA
Also Known As: Token Murkin

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Mackrick » Sat May 25, 2013 8:50 pm

:ymapplause: thanks for the update.
Duc, sequere, aut de via decede
User avatar
Mackrick
Moderator
Moderator

Posts: 9423
Joined: Mon Oct 13, 2008 7:36 pm
Location: Doncaster South Yorkshire

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Sat May 25, 2013 10:20 pm

Dan4th wrote:All I can say is "WOW!".....

You have been handed what amounts to a
sacred trust, haven't you, Dougs????
oh yes definitely at least that's the way I feel about it I am very proud that it is a family heirloom

I can TELL, though, you are more than up
to the task :ymapplause:

Two Questions:::::

1) Are there any screws, bolts or other fittings,
no matter how tiny, which require "Torquing"
to a certain tolerance, and if so, how do you
accomplish this on such a small scale?

Or is it all just by feel?
its all built on fit and feel I have to say the concept is a bit odd for me to grasp as I am used to working with aerospace tolerances however for me the only thing I will not compromise on is safety this model is potentially lethal if it were to go horribly wrong


2) I see she's all mounted on a stand which
allows stationary running, but is there any
location where this loco could be run on some
sort of a circuit and actually "Locomote"?

Or would the inability to lay your hands/fingers
on the controls make this impossible????
oh no it's very runnable there are many clubs with proper track and rolling stock I hope to get joined up and certificated and insured to run once the refurb is complete and I am happy with it. It should pull around 4-6 people without trouble.
For me though the fun is in the engineering way more than the actual using :)



Last of all, I've just GOT to say: I'M IMPRESSED!!!
thanks Dan4th
Danf.
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dan4th » Sat May 25, 2013 11:51 pm

It should pull around 4-6 people without trouble.


YEOUCH!!!!

That's getting on to almost 1/2 a TON :-o

Ah, but how many Gazzes will she pull :p ?

I love the fact, too, that this a story
which is in the process of unfolding B-)

BTW, do you have a decent link to one
of those clubs?

I'm sure they're world-wide, but I've never
been aware of this hobby.....

Don't let me keep you from your mission,
though :D

Danf.
I like to do my planning retroactively!
User avatar
Dan4th
Boeing B-52 Stratofortress
Boeing B-52 Stratofortress

Posts: 14733
Joined: Thu Nov 06, 2008 9:42 pm
Location: Bangor, Maine, USA
Also Known As: Token Murkin

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Sun May 26, 2013 6:59 am

Dan4th wrote:
It should pull around 4-6 people without trouble.


YEOUCH!!!!

That's getting on to almost 1/2 a TON :-o

Ah, but how many Gazzes will she pull :p ? not too sure cos he is a big fella it might manage one if he is hollow ;)

I love the fact, too, that this a story
which is in the process of unfolding B-)

BTW, do you have a decent link to one
of those clubs?
http://www.nwlsme.co.uk/
This is my local club about 2 miles away


I'm sure they're world-wide, but I've never
been aware of this hobby.....
there are quite a few in the states although your loco's are different

Don't let me keep you from your mission,
though :D
no it's all good anyway today is all about Cold War Jets ;) :D quite looking forward to having by ears perforated lol

Danf.
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby 34053 » Sun May 26, 2013 11:24 am

An absolutely fascinating 'Restoration' (how nice not having to need a Crane to lift off the Boiler, etc, as is the case for the 'full size' versions!!). Keep the 'Updates' coming. Thank you for sharing all of this with us.

PW
User avatar
34053
BAE Hawk
BAE Hawk

Posts: 2426
Joined: Fri Oct 24, 2008 1:44 pm
Also Known As: Papa Wedgy

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Tue May 28, 2013 1:09 pm

Thanks PW it is alot easier to handle than your 'playthings' ;)
right on to the latest update
all the water pipes refitted, cleaned and straight·end out
and my little bug bear sorted out so the pipes wont get trapped
the brakes refitted and the floor put back in
the hand waterpump refitted and the cab back wall put back on
all the pipes looking much neater now
There are three diferent ways of getting water out of the tanks into the boiler first one is the hand pump this is on the back wall and had a small leak on one of the pipes so i had to remove it and solder the joint the secound method is the double acting pump on one of the axels this will obviously only work while underway, i tested this by putting compressed air on the boiler to run the train and the pumps work very well indeed. The third and final way to feed water is to use a steam injector this is a fasinating bit of kit and i will cover it later as i need to test this with steam. the water circuit is very complicated as the boiler water has to be managed by the driver this is done by a bypass valve (shown center of last photo) that allows any un needed pumped water to return to the tank, otherwise the boiler would be overfilled resulting in hydraulicly locking the pistons (very not good) anyway I am happy that the two water pumps I have been able to check work very well, so next I will finish off the cab pipework and put some fire on to test the fire grate (which i have 'trimed' to fit better) and the draw on the boiler (which uses a bit of steam to 'pull the fire')
TBC.
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Mackrick » Tue May 28, 2013 6:23 pm

Nice update Dougs the photo record makes it all the nicer :ymapplause:
Duc, sequere, aut de via decede
User avatar
Mackrick
Moderator
Moderator

Posts: 9423
Joined: Mon Oct 13, 2008 7:36 pm
Location: Doncaster South Yorkshire

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Wed May 29, 2013 12:49 pm

Finishing off the cab pipework
quite a diferance from when i started
next came the job of fitting the steam water injector this had some pretty iffy pipework blocking the fire grate
and the injector itself
next came time to test it all to make sure the boiler was functioning properly and the injector was working
filled and lit the boiler and waited for pressure
i had a couple of very small leaks but they soon went away when the temp came up
this test was unfortunately a failure as i was unable to get the pressure above 50PSI however it did point out a couple of areas i need to look at;
1 the boiler draws way too much air through it so i will need to reduce the chimney area a little to slow it down a tad or i will end up loosing steam pressure too quickly.
2 i am now more convinced than ever that the timing is not right in that the pistons were locking up when i tried to get it moving.
and i have put a video of it running on air on too

TBC
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby 34053 » Wed May 29, 2013 5:55 pm

Amazing! Just great to see her 'come alive' again (even if it is compressed air at the moment and not live steam). You've really achieved a lot and I'm sure that you will be able to iron out the problem areas that you mention, in due course. Well done!!

PW
User avatar
34053
BAE Hawk
BAE Hawk

Posts: 2426
Joined: Fri Oct 24, 2008 1:44 pm
Also Known As: Papa Wedgy

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dan4th » Thu May 30, 2013 12:18 pm

LOCOMOTION!

(...sort of...)

Great stuff, Dougs, and thanks
for the vid :ymapplause: !

Danf.
I like to do my planning retroactively!
User avatar
Dan4th
Boeing B-52 Stratofortress
Boeing B-52 Stratofortress

Posts: 14733
Joined: Thu Nov 06, 2008 9:42 pm
Location: Bangor, Maine, USA
Also Known As: Token Murkin

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Mackrick » Thu May 30, 2013 6:18 pm

Nice video...it's looking good...
Duc, sequere, aut de via decede
User avatar
Mackrick
Moderator
Moderator

Posts: 9423
Joined: Mon Oct 13, 2008 7:36 pm
Location: Doncaster South Yorkshire

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Thu May 30, 2013 6:31 pm

Thanks guys I am making good progress and hope to get it running soon I have some interesting repairs to post in the near future too :)
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Re: Restoration of 5" gauge 0,6,0 tank loco

Postby Dougs » Fri May 31, 2013 7:36 pm

From the steam up I wanted to fix the small leaks and fix the starting problem
First off the sight glass and tap
I replaced the old worn out seals with orings
Next the non return valve for the water injector
Had to reseat the valve
Next the starting problem this I thought was a timing issue well after some close inspection I found a leak on the valve steam chest on the left hand cylinder
I found the gasket was split
I made a new gasket
Unfortunately there is another leak further down so I am going to have to remove the piston which is a really big job
TBC
B-)
User avatar
Dougs
Boeing C-17 Globemaster III
Boeing C-17 Globemaster III

Posts: 1048
Joined: Mon May 04, 2009 4:20 pm
Location: coalville leicestershire
Also Known As: Avro Atlantic

Next

Return to History Past and Present

Who is online

Users browsing this forum: No registered users and 0 guests
